Flexible Grooved Couplings: 5 Critical Piping Uses in 2026

In today’s fluid handling and mechanical construction work, industrial sites need piping connections that provide fast installation, strong safety, and good stress relief from movement. As engineering standards move forward in 2026, mechanical pipe joinery keeps turning away from old hot-work welding and rigid threading.

• Rapid Installation: Up to 70% faster labor turnarounds without open-flame permits.
• Dynamic Stress Management: Superior absorption of vibration, deflection, and thermal movement.
• Lower Operational Risk: Elimination of internal weld slag and joint stress concentrations.
• Simplified Maintenance: Quick access for system inspections, cleaning, and component replacements.

As a top global grooved pipe fittings manufacturer, JunTong focuses on high-performance ductile iron grooved coupling solutions, ductile iron pipe fittings, and advanced grooved pipe coupling systems. The company holds ISO 9001 certification along with UL and FM approvals worldwide. JunTong uses quality casting methods, strong C-shaped elastomer gaskets, and direct engineering support to protect key fluid systems in many places.

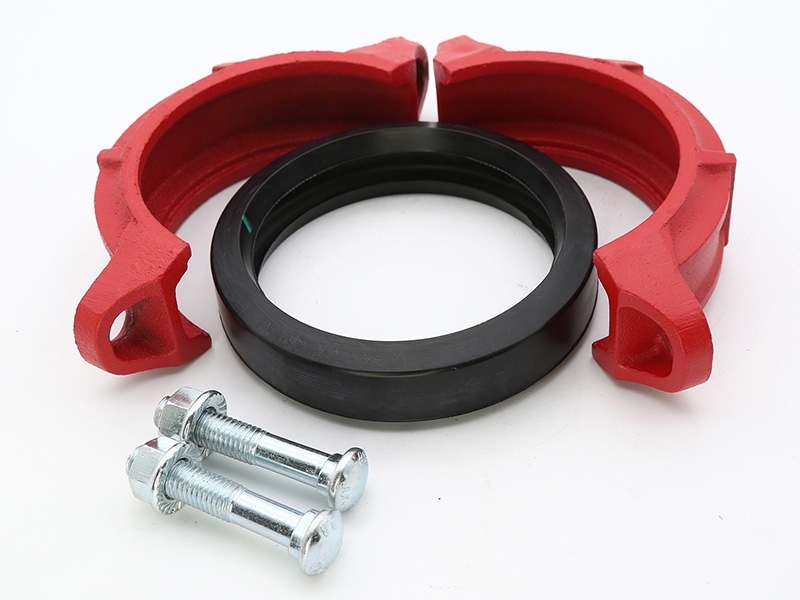

Rigid vs. Flexible Grooved Couplings: Structural Differences

Choosing between a rigid and a flexible mechanical joint forms the basis for maintaining full piping system strength under changing loads. Understanding rigid vs. flexible grooved coupling performance helps engineers choose the correct connection method for different operating environments.

Key Mechanical Differences and Motion Accommodation

How locking keys meet pipe grooves decides if a line holds steady or bends safely when stress appears.

• Rigid Grooved Couplings: Feature cross-ribbed housing designs that grip tightly into the pipe groove, locking the joint against linear movement, rotation, or angular deflection.

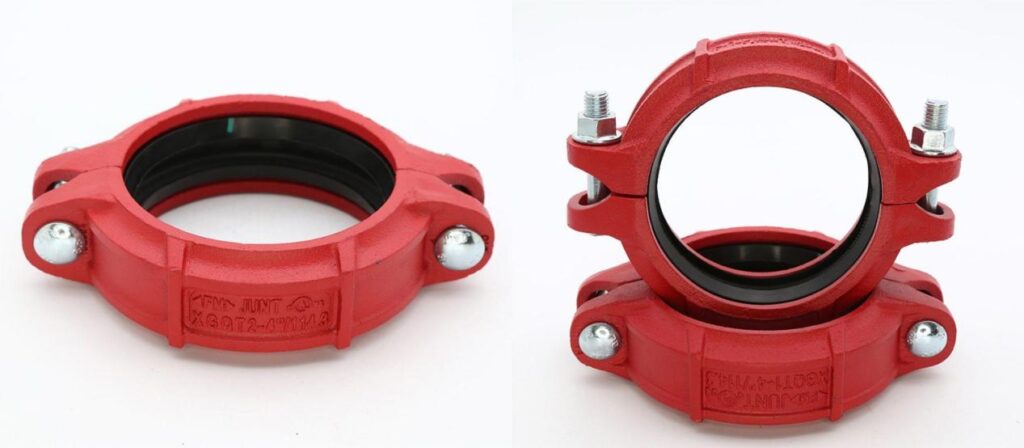

• Flexible Grooved Couplings: Built with narrower key dimensions relative to the groove width, allowing controlled linear expansion, angular bending, and axial deflection without compromising the gasket seal.

A flexible grooved coupling functions as a specialized mechanical pipe coupling that provides controlled movement while maintaining reliable pressure containment.

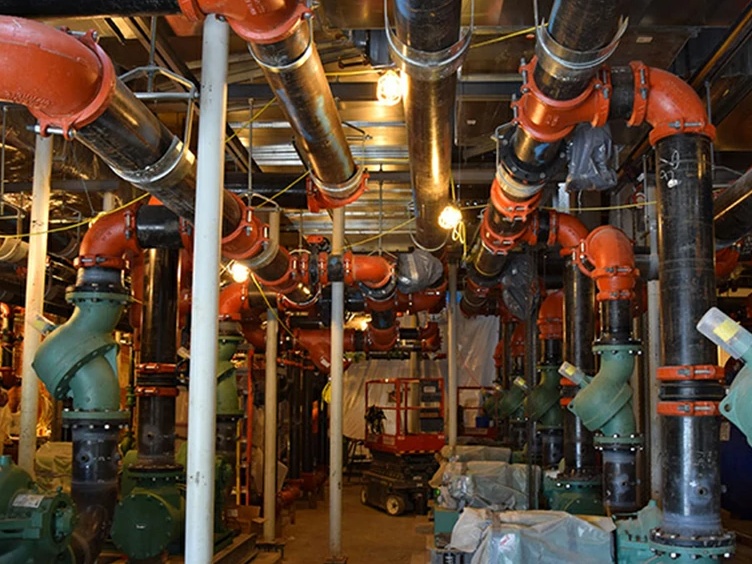

Five Critical Application Scenarios for Flexible Grooved Couplings

A flexible grooved coupling provides vital engineering advantages across demanding industrial environments where rigid pipe joints risk mechanical fatigue or structural rupture.

Scenario 1: High-Vibration Mechanical Equipment Connections

High-energy mechanical equipment transfers severe operational harmonics directly into rigid fluid lines, causing joint loosening and pipe fatigue.

• Problem Solved: Continuous micro-vibrations from heavy-duty centrifugal pumps, chillers, and air compressors can fracture rigid welded joints or cause flange bolt loosening over time.
• JunTong Application: Installing JunTong grooved couplings for industrial piping near pump suction and discharge lines dampens high-frequency mechanical vibration. The combination of heavy ductile iron housings and elastomeric gaskets isolates pump shock, extending equipment life and preventing line leakage.

Scenario 2: Thermal Expansion and Contraction in HVAC Systems

Large commercial buildings experience major ambient temperature shifts that induce linear expansion and contraction across long pipe runs.

• Problem Solved: Unaccommodated thermal growth in a large HVAC grooved piping system exerts massive axial force against fixed anchors, resulting in pipe buckling or structural wall damage.
• JunTong Application: Strategically deploying a flexible pipe coupling array along long hot/chilled water loops absorbs calculated linear pipe movement inside the groove gap. This eliminates the space requirements, pressure drops, and added costs of bulky expansion loops or rubber bellows.

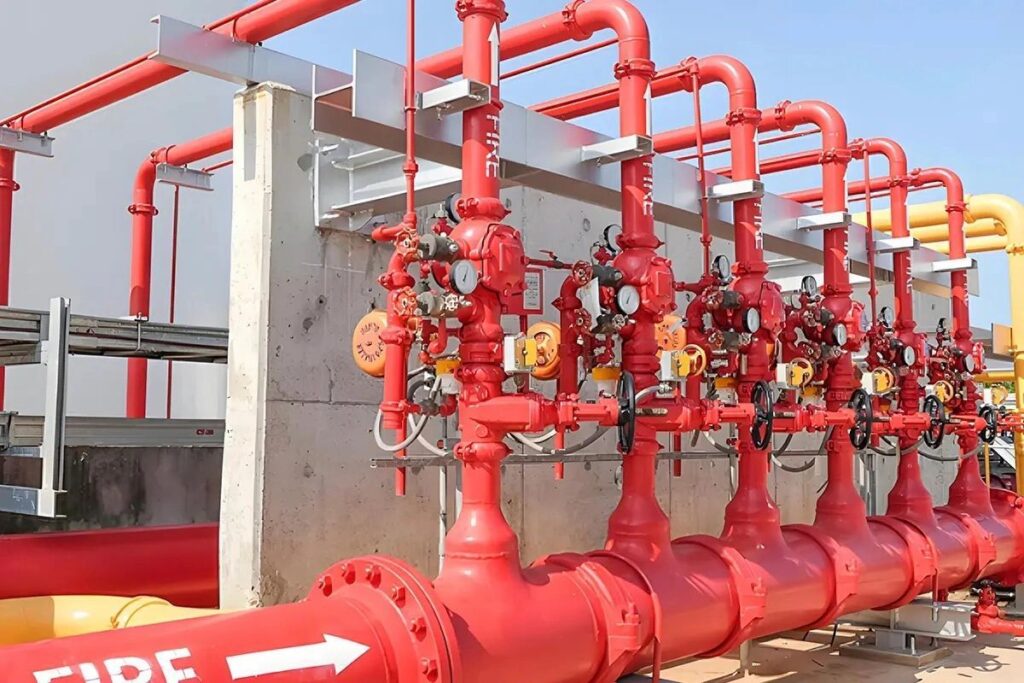

Scenario 3: High-Rise Fire Protection and Standpipe Systems

Commercial high-rise fire suppression networks must endure extreme hydraulic pressure spikes and structural building sway during emergency events.

• Problem Solved: Rapid water hammer from high-capacity fire pumps and natural building drift can shear rigid connections, disabling critical sprinkler risers.
• JunTong Application: JunTong UL/FM certified fire protection grooved coupling fittings handle severe pressure surges while permitting up to 3 to 5 degrees of angular deflection per joint. This ensures uninterrupted water supply to sprinkler lines during building sway or seismic shifts.

Scenario 4: Mining, Slurry, and Aggressive Industrial Processing

Abrasive media, fluctuating terrain, and corrosive working environments require durable pipe connections that facilitate rapid routine cleaning.

• Problem Solved: Pipe wear, surface erosion, and ground settling cause frequent joint alignment changes and costly maintenance downtime in an industrial grooved piping system.
• JunTong Application: JunTong heavy-wall ductile iron pipe fittings feature high tensile strength and anti-corrosive epoxy coatings. They withstand aggressive slurry transport and permit field teams to disassemble, clean, and re-rotate worn pipe sections in minutes.

Scenario 5: Seismic Zones and Differential Settlement Protection

Pipelines passing through structural expansion joints, foundation boundaries, or earthquake-prone soil profiles face severe bending moments.

• Problem Solved: Differential ground settling or seismic shear stress snaps rigid pipe joints at building entry points, leading to hazardous fluid leaks.
• JunTong Application: Utilizing a multi-joint grooved pipe connection system layout across seismic expansion gaps creates a dynamic articulate joint assembly. The engineered flexibility absorbs multi-axis movement and earth displacement, protecting structural entry points.

Why Modern Piping Engineers Partner with JunTong

Delivering reliable performance in an industrial pipe coupling installation requires high-grade metallurgy backed by specialized technical support.

Advanced Metallurgy, Certified Quality, and Custom Technical Services

JunTong provides end-to-end reliability from initial engineering selection through full system installation.

• Thickened Body Metallurgy: Formulated with high-strength ductile iron casting to ensure superior burst pressure resistance and impact strength.
• Precision Rubber Seals: Molded with high-resilience EPDM and specialized elastomers that maintain long-term elastic memory under temperature fluctuations.
• Tailored Engineering Selection: Offers comprehensive technical support, one-on-one pipe sizing consultations, and sample testing to eliminate selection errors and lower project costs.

Elevate Your Piping Infrastructure with JunTong

Partnering with an experienced grooved coupling manufacturer ensures long-term operational safety, lower labor costs, and superior pipeline resilience. JunTong delivers certified quality, complete catalog options, and custom engineering support tailored to your project scope.

As a specialized grooved pipe fittings manufacturer, JunTong provides reliable grooved pipe coupling solutions, flexible connection systems, and industrial-grade products for HVAC, fire protection, mining, and infrastructure applications.

Contact JunTong today at speng@groovedfitting.cn or visit www.groovedfitting.cn to request product samples and factory-direct pricing!

FAQ

Q: What is the main structural difference between a rigid vs flexible grooved coupling?

A: A rigid coupling holds pipe ends firmly in place so no movement occurs at the joint. A flexible grooved coupling works differently. It builds clearance into the groove. This clearance allows the pipe to expand, contract, and deflect at an angle.

Q: How do grooved pipe connection systems lower overall installation costs compared to welding?

A: Grooved pipe connection systems remove the need for flame permits. They also eliminate specialized welders and pipe beveling. Jobsite labor time drops by up to 70 percent as a result. Safety on site improves at the same time.

Q: Can flexible grooved couplings replace dedicated expansion loops in HVAC piping?

A: Yes. Placing several flexible grooved couplings along long straight pipe runs handles thermal movement right at the joints. This step often removes the need for large expansion loops in the layout.

Q: How do I select the right rubber gasket compound for industrial grooved pipe couplings?

A: Gasket choice depends on the fluid and the temperature range. Standard EPDM gaskets work for water, fire, and HVAC systems. NBR or fluoroelastomer compounds fit better with petroleum, compressed air, and harsh chemicals.
