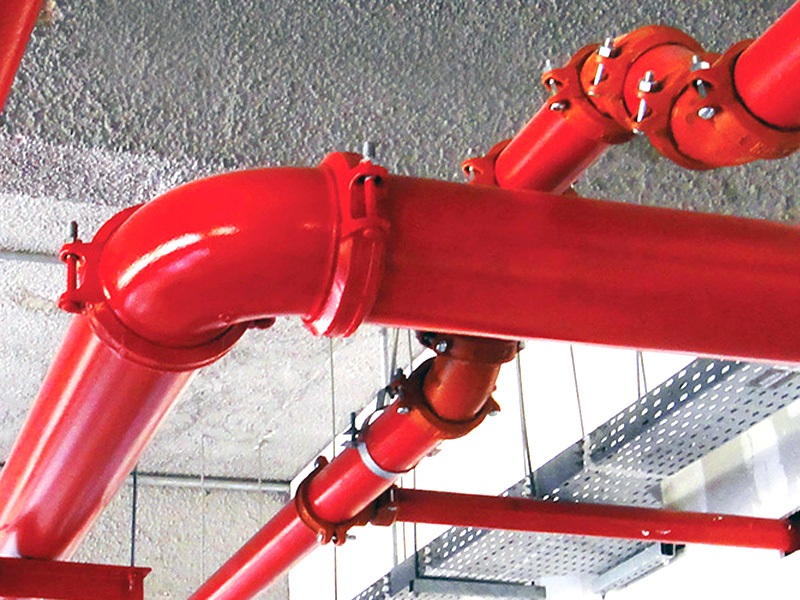

Grooved Couplings Contractor Guide: Speed, Strength & Savings

Essential Overview of Modern Mechanical Piping Connections

Modern mechanical piping systems require high mechanical strength, rapid field deployment, and long-term joint integrity.

Introduction to Modern Grooved Piping Solutions

The mechanical pipe coupling has changed commercial and industrial fluid transport. It replaces welding, which uses lots of energy, and thread cutting, which takes time.

• Speed of Assembly: A standard grooved pipe coupling installs up to three times faster than welded joints. This cuts site downtime in a clear way.
• System Flexibility: A grooved coupling handles vibration and linear pipe movement. It keeps pressure integrity intact at the same time.
• Safety Enhancement: Cold-forming connection technology removes open flames, hot-work permits, and fire hazards from active job sites.

About JunTong: Precision Ductile Iron Manufacturing

JunTong stands out as a leading maker focused on high-grade ductile iron grooved couplings and pipe fittings for engineering projects worldwide.

• Manufacturing Scale: The company runs facilities that cover 68,000 m² and turns out more than 50,000 tons each year.
• Engineering Standard: An experienced technical team supports the work, and 20% of staff are specialized engineers who maintain strict quality control.
• Product Integrity: Every ductile iron grooved coupling uses thickened housing geometry and high-grade rubber seals for strong structural performance.

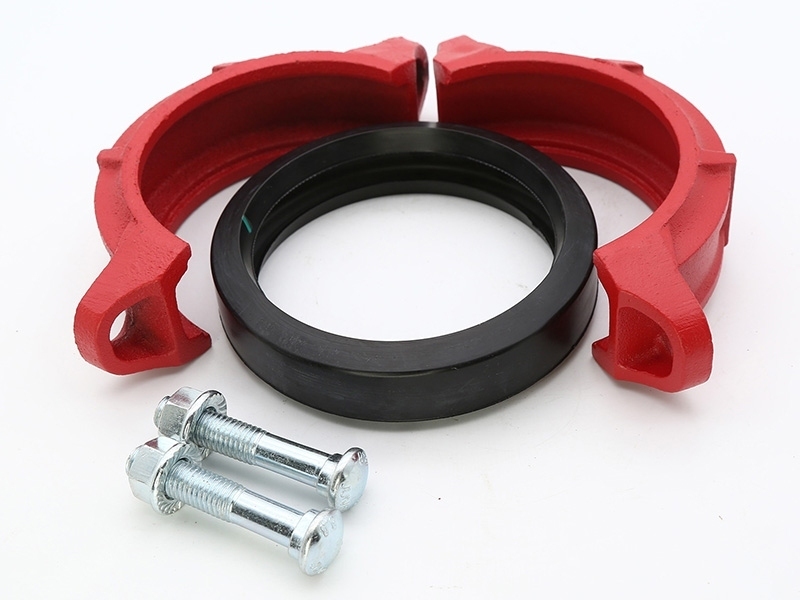

Engineering Core Features: Rigid vs. Flexible Grooved Couplings

Selecting the right coupling housing geometry is crucial to meeting strict system deflection, pressure, and alignment specifications.

Rigid Grooved Coupling Dynamics in Commercial Mechanical Systems

A rigid grooved coupling provides a firm joint that grips the pipe grooves to prevent angular movement and linear expansion.

• Structural Stability: Cross-ribbed housings grip the groove walls tightly, matching the rigidity of traditional flanged or welded connections.
• Alignment Precision: Ideal for mechanical rooms, vertical risers, and main distribution lines where straight-line stability is required.
• Pressure Tolerance: Engineered to support a high grooved coupling pressure rating suitable for demanding commercial pressure zones.

Flexible Grooved Coupling Performance under Thermal and Seismic Stress

A flexible grooved coupling allows controlled linear expansion, contraction, and angular deflection within the joint interface.

• Thermal Compensation: Absorbs pipe movement caused by seasonal temperature fluctuations in HVAC grooved coupling installations.
• Seismic Protection: Acts as an integrated expansion joint to absorb ground movement and mechanical vibration near pumps and chillers.
• Stress Isolation: Prevents structural strain from transferring directly into pumps, boilers, and delicate equipment headers.

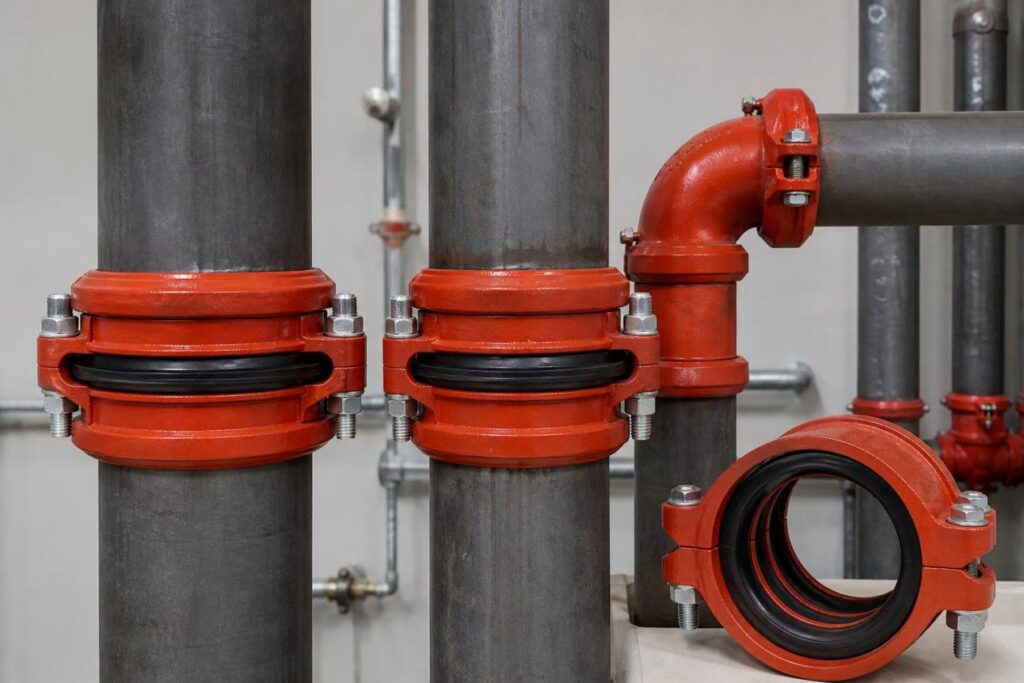

Contractor Financial Analysis: Installation and Labor Cost Optimization

Controlling job site expenditures requires evaluating total installed costs rather than looking solely at component purchase prices.

Cutting On-Site Assembly Time and Labor Expenses

Evaluating grooved coupling labor cost reveals massive savings when compared to traditional field fabrication methods.

• Streamlined Workflow: Simple two-bolt clamping cuts crew size requirements and reduces total man-hours per joint.
• Minimal Tooling: Requires standard socket wrenches rather than heavy welding rigs or complex threading machinery.
• Predictable Project Timelines: Simplified grooved coupling installation enables mechanical contractors to consistently beat project completion deadlines.

Eliminating Hot-Work Permits and Specialized Equipment Costs

Total grooved coupling installation cost drops significantly when indirect site expenses are calculated.

• No Flame Permits: Eliminates costly fire-watch personnel, burn permits, and specialized pipe-welding certifications.
• Reduced Inspection Overhead: Visual inspection of metal-to-metal pad contact replaces expensive non-destructive joint testing.
• Zero Hazardous Fumes: Cold-press grooved piping system connections eliminate toxic welding fumes, keeping working environments safe.

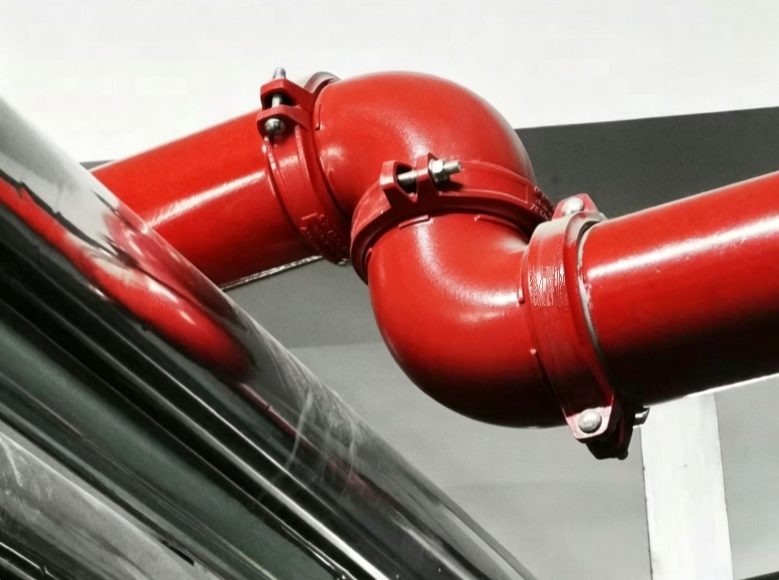

Critical Application Scenarios: HVAC and Fire Protection Systems

Heavy-duty ductile iron fittings are essential components in commercial building infrastructure, industrial processing, and life safety networks.

High-Performance Fire Protection Grooved Coupling Solutions

Every fire protection grooved coupling must deliver absolute reliability during emergency pressure surges and high flow demands.

• Corrosion Defense: Features robust anti-corrosion baking paint or electro-deposited epoxy coatings to protect internal and external surfaces.
• Certified Safety: Built with high-tensile ductile iron bodies to handle severe water hammer and system pressure spikes.
• Fast Prefabrication: Allows fire sprinkler contractors to pre-groove drop lines off-site for rapid overhead assembly.

Reliable HVAC Grooved Coupling Implementations

In commercial heating and cooling loops, an HVAC grooved coupling provides durable sealing against continuous thermal cycling.

• EPDM Seal Technology: Formulated gaskets withstand constant hot and chilled water loop temperature swings without cracking.
• Noise Suppression: Synthetic rubber gaskets isolate fluid noise and damp motor vibration from circulating pumps.
• Compact Footprint: Fits tight mechanical chases where space restrictions prevent pipe welding or threading torch access.

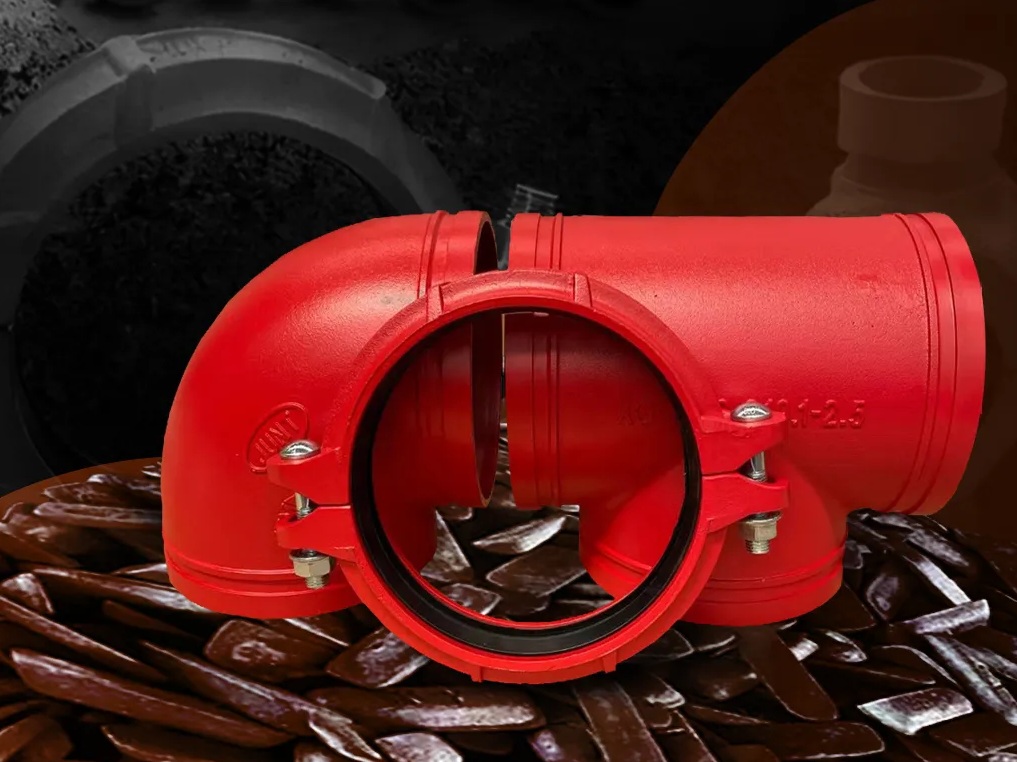

Lifecycle Maintenance and Quality Assurance Protocols

Long-term pipeline integrity depends on easy maintenance procedures and complete technical support from the manufacturer.

Streamlined Grooved Coupling Maintenance Procedures

Proper grooved coupling maintenance minimizes system downtime during routine facility overhauls or emergency line repairs.

• Simple Disassembly: Unbolting two coupling housing segments allows quick pipe section removal without cutting adjacent runs.
• Targeted Leak Resolution: Quickly resolve gasket seating issues by inspecting for burrs, lubricating gaskets, or retightening bolts to nominal torque.
• Reusable Hardware: Cast ductile iron housings and heavy hex bolts can be safely reinstalled after routine line cleanings.

Comprehensive Engineering and Technical Services

Partnering with an experienced grooved coupling manufacturer like JunTong ensures smooth execution from project design to site delivery.

• Technical Consultation: Complete design guidance, engineering code interpretation, and exact component selection for custom project layouts.
• Free Selection & Sampling: Tailored sizing verification and sample testing options prevent purchasing errors and material waste.
• Quality Guarantee: Backed by comprehensive warranty support and rapid replacement assistance for verified manufacturing defects.

Optimize Your Mechanical Pipeline Cost and Efficiency Today!

Are you looking to cut labor overhead while improving structural integrity on your next fire protection or HVAC contract? As a premier grooved coupling manufacturer, JunTong delivers high-grade ductile iron grooved coupling solutions and pipe fittings tailored to your project specs.

Contact JunTong Technical Services Today to request a free engineering consultation, custom material quote, or product sample package!

FAQ

Q: What are the primary labor-saving advantages of grooved piping systems over traditional welding?

A: Grooved piping system connections eliminate hot-work permits, pipe beveling, and specialized welding labor, reducing total installation time by up to 60–70%.

Q: How do rigid and flexible grooved couplings differ in system layout applications?

A: A rigid grooved coupling locks the joint to maintain straight alignment in risers and mains, whereas a flexible grooved coupling accommodates vibration, thermal expansion, and angular deflection.

Q: What working pressure ratings can ductile iron grooved couplings support in heavy-duty commercial projects?

A: High-tensile ductile iron grooved couplings typically handle working pressures from 300 PSI up to 1000 PSI depending on housing series, pipe wall thickness, gasket selection, and the specified grooved coupling pressure rating.

Q: What basic field maintenance is required if a grooved coupling joint exhibits a minor seal weeping?

A: Isolate the line, check that housing bolts are evenly torqued to specification, inspect the gasket seal for debris or alignment issues, and clear any pipe groove burrs as part of routine grooved coupling maintenance.
