Ductile Iron Pipe Fittings: 2026 Technical Specs & Key Uses

Navigating Modern Piping Infrastructure in 2026

Modern industrial and commercial facilities need piping networks that install quickly, hold up well under stress, and seal reliably over time. Selecting suitable ductile iron pipe fittings along with mechanical joining methods helps cut installation steps and reduce future downtime.

The Vital Role of Ductile Iron Grooved Fittings

Mechanical grooved piping systems have changed how pipelines get assembled in many industries.

• Superior Mechanical Resilience: Ductile iron pipe fittings are made from spheroidal iron. This material gives strong mechanical performance and better ductility than traditional gray iron, which helps avoid sudden breaks from mechanical shock.
• Rapid Installation Speed: A cold-formed or cut groove creates a grooved pipe connection that goes together faster than welding or flanging. It also removes the need for hot work on site.
• Brand Spotlight – JunTong: As a professional ductile iron pipe fittings manufacturer, JunTong supplies ductile iron grooved fittings, grooved pipe fittings, rigid grooved coupling, and flexible grooved coupling products for commercial and industrial piping projects.

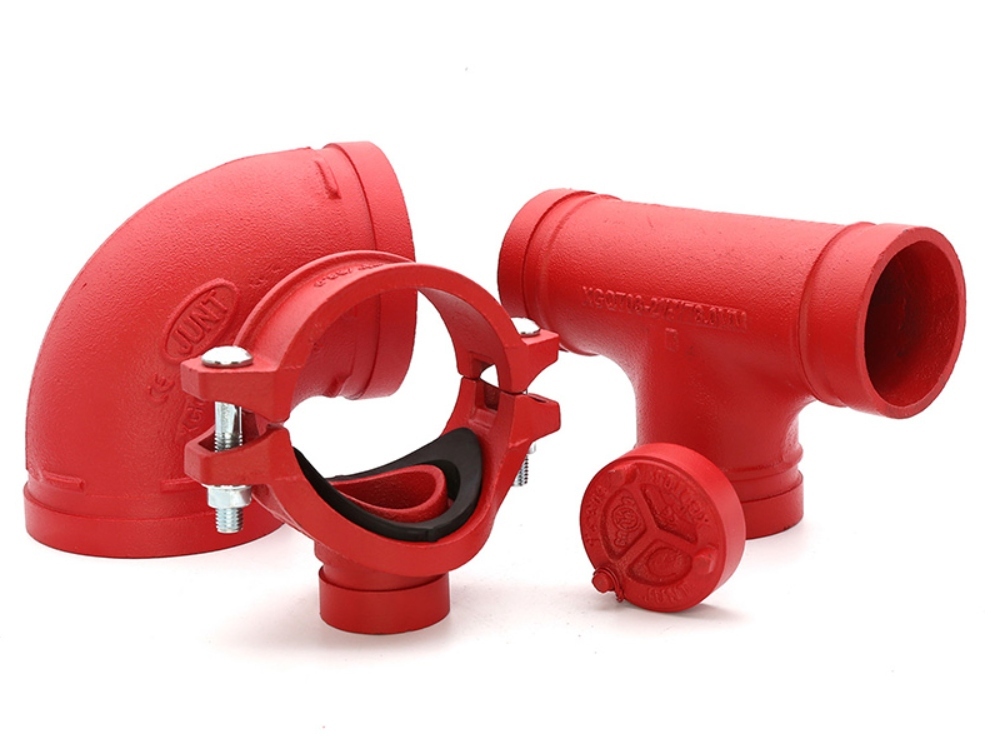

Technical Specification Highlights of Ductile Iron Pipe Fittings

With knowledge of the technical specifications of ductile iron pipe fittings, an engineer can make comparisons in terms of mechanical strength, working pressure, gasket compatibility, coupling type, and environmental requirements before purchase.

Mechanical Strength: ASTM A536 Grade 65-45-12

The mechanical strength of high-quality ductile iron pipe fittings is dependent upon the material composition of spheroidal graphite.

• Tensile &Yield Strength: ASTM A536 Grade 65-45-12 ductile iron pipe fittings provide a minimum tensile strength of 65,000 PSI and a yield strength of 45,000 PSI.
• Ductility &Elongation: ASTM A536 Grade 65-45-12 provides a minimum elongation of 12% for ductile iron pipe fittings so that the material deforms plastically under stress.
• Stress Concentration Reduction and Impact Energy Absorption: Ductile iron grooved fittings have spheroidal graphite, which prevents brittle fracture due to stress concentration.

Advanced Sealing and Pressure Capabilities: EPDM Gasket and Working Pressure

Reliable sealing in a grooved pipe connection depends on gasket material, housing geometry, pipe preparation, and specified working pressure.

• Pressure-Responsive EPDM Gasket: A standard EPDM gasket uses a C-shaped sealing profile designed to maintain contact with the pipe surface as internal pressure changes.
• High Working Pressure Ratings: Depending on coupling size and design, ductile iron pipe fittings specifications may include working pressure ranges from approximately 300 PSI to 500 PSI.
• Broad Temperature Range: Suitable EPDM gasket materials can be used across a wide temperature range for cold and hot water applications.

Structural Coupling Mechanics: Rigid Grooved Coupling vs. Flexible Grooved Coupling

Choosing between a rigid grooved coupling and a flexible grooved coupling comes down to whether the piping system needs to stay fixed or handle some controlled movement.

• Rigid Grooved Coupling: A rigid grooved coupling restricts angular and axial movement. It fits straight pipe runs, vertical risers, and spots that call for steady alignment.
• Flexible Grooved Coupling: A flexible grooved coupling permits limited angular shifts plus expansion, contraction, and vibration absorption.
• Protective Surface Coatings: JunTong adds protective coatings to ductile iron grooved fittings. The coatings help guard against corrosion in exposed or harsh conditions.

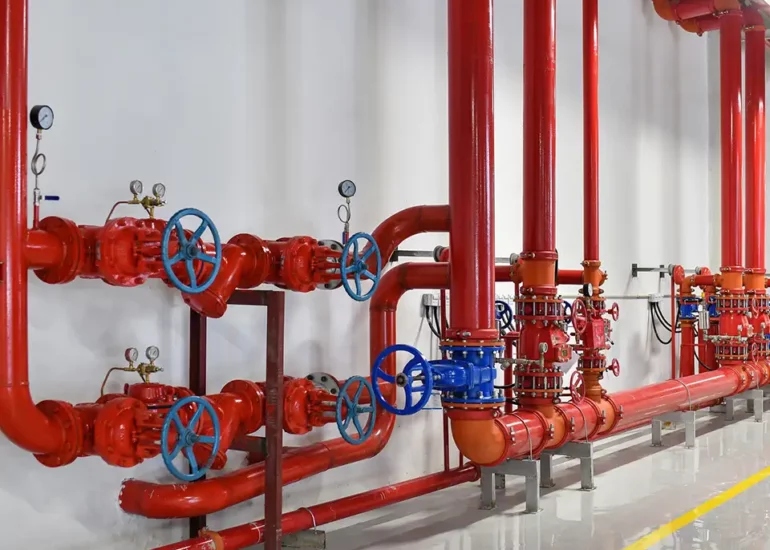

7 Key Industrial Applications for Ductile Iron Pipe Fittings in 2026

Modern infrastructure relies on diverse ductile iron pipe fitting applications. The following seven sectors demonstrate where grooved pipe fittings provide practical installation and maintenance benefits.

1. Fire Protection Pipe Fittings and Sprinkler Systems

Fire protection pipe fittings need solid seals, quick setup, and steady pressure handling.

• System Reliability: Ductile iron grooved fittings see regular use in sprinkler mains, risers, branch lines, and pump-room piping.
• Water Hammer Management: A well-chosen flexible grooved coupling takes in sudden shifts from pump starts or pressure swings.

2. Commercial HVAC Piping Systems

Large HVAC piping systems rely on grooved couplings for chilled water, hot water, condenser water, and mechanical-room lines.

• Noise & Vibration Damping: A flexible grooved coupling placed near pumps or chillers cuts down on vibration transfer.
• Thermal Movement: Grooved systems handle controlled expansion and contraction in HVAC piping systems when the layout accounts for temperature changes.

3. Municipal Water Supply and Sewage Processing

Municipal networks call for tough ductile iron pipe fittings in water distribution, utility piping, and wastewater lines.

• Reliable Pipe Connections: A properly installed grooved pipe connection makes maintenance and branch-line changes simpler.
• Corrosion Protection: The right coatings and gasket choice keep performance steady in wet or chemically active spots.

4. Mining and Abrasive Slurry Transportation

Mining jobs demand rugged industrial pipe fittings that stand up to mechanical hits and frequent layout changes.

• Impact Resistance: Heavy-duty ductile iron grooved fittings deliver strong structural performance in tough conditions.
• Modular Piping: Grooved pipe fittings let crews assemble, move, or service dewatering and temporary process lines with less effort.

5. Chemical Processing and Industrial Plant Piping

Manufacturing facilities rely on standardized industrial pipe fittings to support process-line maintenance and reconfiguration.

• Gasket Selection: Depending on the conveyed medium, EPDM gasket materials or alternative elastomers may be required.
• Simplified Maintenance: Mechanical grooved joints allow valves, strainers, and equipment sections to be accessed without extensive cutting or welding.

6. Power Generation and Cooling Tower Systems

Power and cooling systems experience continuous thermal cycling and high-volume flow conditions.

• Structural Stability: ASTM A536 Grade 65-45-12 housings provide the mechanical properties needed for demanding pipeline networks.
• Sealing Performance: A compatible EPDM gasket helps maintain sealing performance across repeated operating cycles.

7. Marine and Offshore Piping Installations

Marine applications benefit from compact mechanical connections where space and movement are important design considerations.

• Compact Installation: Grooved pipe fittings generally require less installation space than many large flanged connections.
• Movement Accommodation: A flexible grooved coupling can help accommodate limited movement and vibration where permitted by system design.

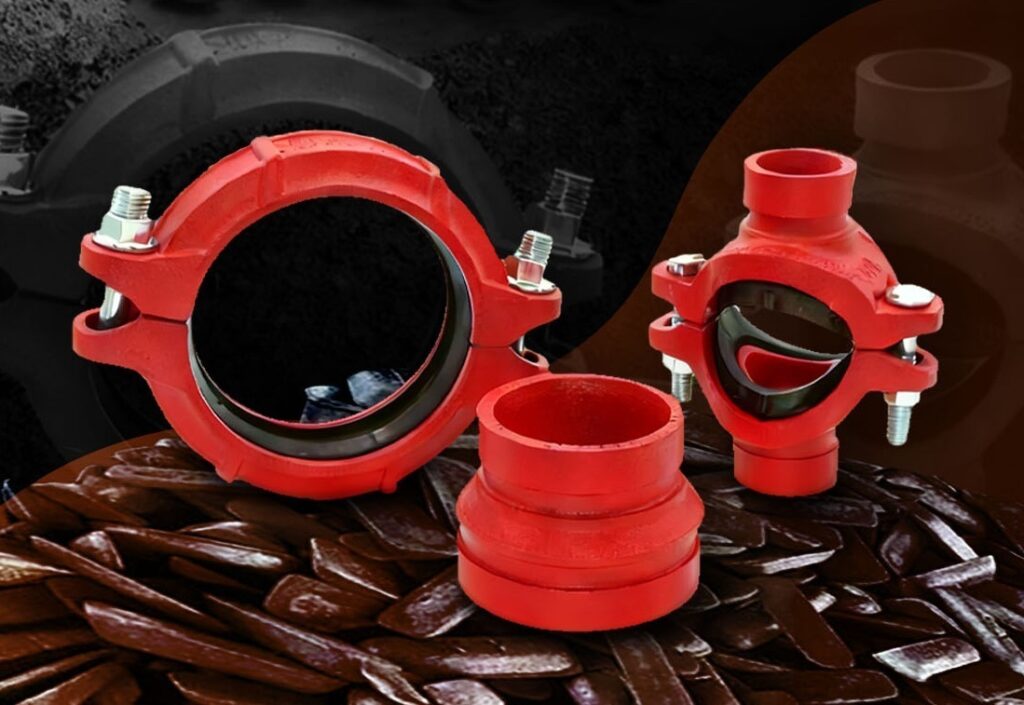

How JunTong Optimizes Industrial Pipeline Reliability

Selecting a qualified ductile iron pipe fittings manufacturer helps ensure product consistency, correct selection, and technical support for different piping applications.

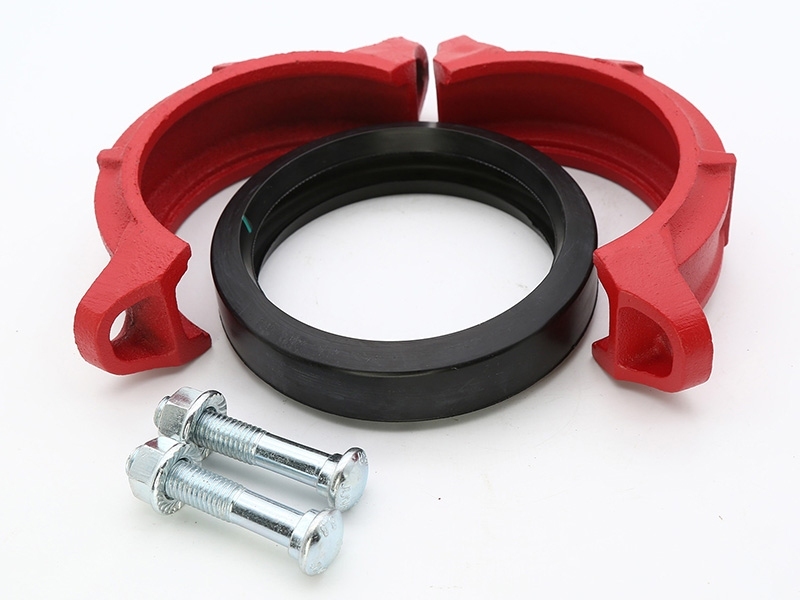

Manufacturing Excellence and Technical Support by JunTong

JunTong manages casting, machining, and coating steps. The company also provides product selection help for different ductile iron pipe fitting applications.

• Quality Control: Staff checks casting sizes, material strength, coating finish, and pressure performance during production.
• Project Selection Service: Technical staff work with buyers to review ductile iron pipe fittings specifications, pipe sizes, working pressure, gasket materials, and coupling types.
• Comprehensive Product Catalog: JunTong supplies ductile iron grooved fittings, including rigid grooved coupling, flexible grooved coupling, elbows, tees, reducers, mechanical tees, and flange adaptors.

Conclusion

Upgrading to ductile iron pipe fittings and grooved piping technology can simplify installation, support maintenance access, and provide reliable mechanical performance across infrastructure projects.

Partner with JunTong for Superior Piping Solutions

Contact JunTong for technical guidance, quotations, or samples for your next fire protection pipe fittings, HVAC piping systems, municipal water, or industrial pipe fittings project.

• Request a Custom Quote: Receive pricing based on pipe size, fitting type, working pressure, gasket requirements, and project volume.
• Order Product Samples: Evaluate JunTong ductile iron grooved fittings and grooved pipe fittings before bulk procurement.

FAQ

Q: What are the key aspects of ductile iron pipe fittings specification?

A: The key aspects in relation to ductile iron pipe fittings specification are the grade of the material, the dimensions of the fittings, maximum pressure, type of coating, gasket material, coupling type, pipe type used, and the application requirements.

Q: What is the difference between rigid and flexible grooved coupling?

A: In a rigid grooved coupling, there is no allowance for movement, while a flexible grooved coupling allows angular movement and vibration.

Q: What are some of the applications of ductile iron grooved fittings?

A: Some applications of ductile iron pipe fittings include Fire protection pipe fittings, HVAC piping, Municipal water distribution systems, Mining pipes, Power generation systems, and many others.

Q: Why is ASTM A536 Grade 65-45-12 relevant in ductile iron pipe fittings?

A: ASTM A536 Grade 65-45-12 is relevant in ductile iron pipe fittings as it specifies the tensile and yield properties of ductile iron.
