Top-Grade Grooved Pipe Fittings for Fire Protection Systems

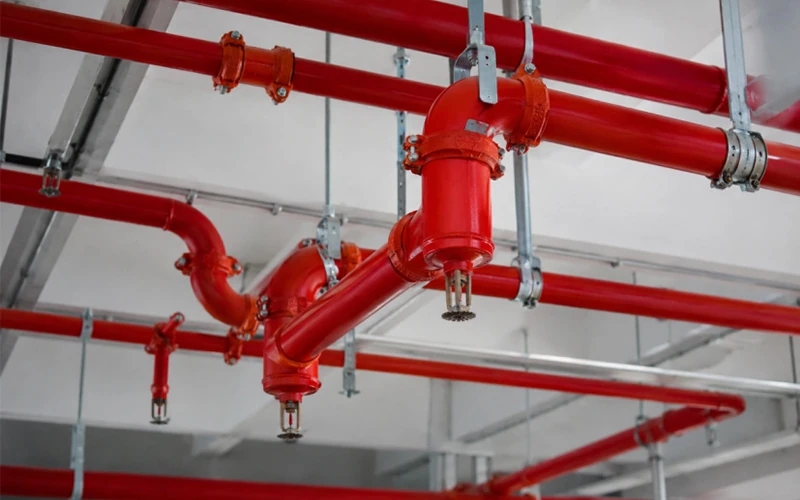

The Critical Role of Reliability in Fire Protection Piping

Fire suppression networks need solid mechanical strength and quick installation. This helps protect buildings along with key infrastructure. Picking the right grooved pipe fittings for fire protection shapes water flow, installation speed, upkeep needs, and how long the system holds up.

Evolving Standards and Modern Installation Demands

Fire safety setups now lean on mechanical joints that cut down on welding and threading in the field.

• Fast Flame-Free Assembly: Using grooved pipe fittings for fire protection lets contractors put sprinkler piping together fast and lowers hot-work needs on commercial and industrial jobs.
• Dynamic Stress Distribution: Well-chosen fire protection grooved fittings handle thermal shifts, building movement, and changing loads while keeping pipe joints steady.

JunTong Manufacturing Excellence: As a focused fire protection fittings manufacturer, JunTong makes ductile iron grooved fittings, couplings, tees, and other fire protection pipe fittings for sprinkler and life-safety lines.

Core Components and Mechanical Dynamics of Fire Sprinkler Grooved Fittings

Understanding the mechanical behavior of fire sprinkler grooved fittings helps specifiers design resilient fire suppression networks around building movement, hydraulic requirements, and pipe support conditions.

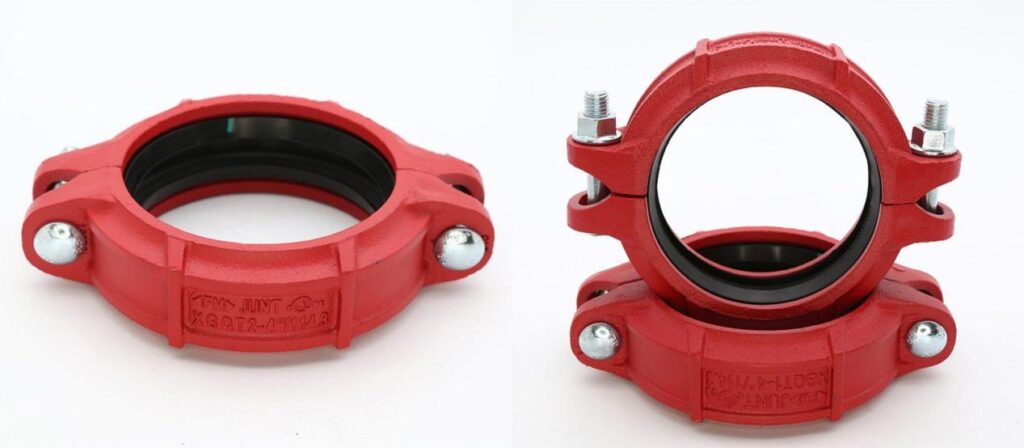

Rigid Grooved Coupling vs. Flexible Grooved Coupling Applications

Specifiers must correctly deploy rigid and flexible designs when selecting a grooved coupling for fire protection systems.

• Rigid Grooved Coupling for Vertical Risers: A rigid grooved coupling firmly engages the pipe grooves to restrict angular deflection and axial movement, making it suitable for vertical sprinkler risers, main headers, and straight pipe runs.
• Flexible Grooved Coupling for Dynamic Movement: A flexible grooved coupling permits controlled linear movement and angular deflection, making it useful near expansion joints, seismic zones, and fire pump connections.
• Vibration Isolation in Pump Rooms: Flexible grooved fittings for fire sprinkler systems can help accommodate vibration and water-hammer forces around pumps and other mechanically active equipment.

Choosing between a rigid grooved coupling and flexible grooved coupling therefore depends on whether the system requires maximum rigidity or controlled movement.

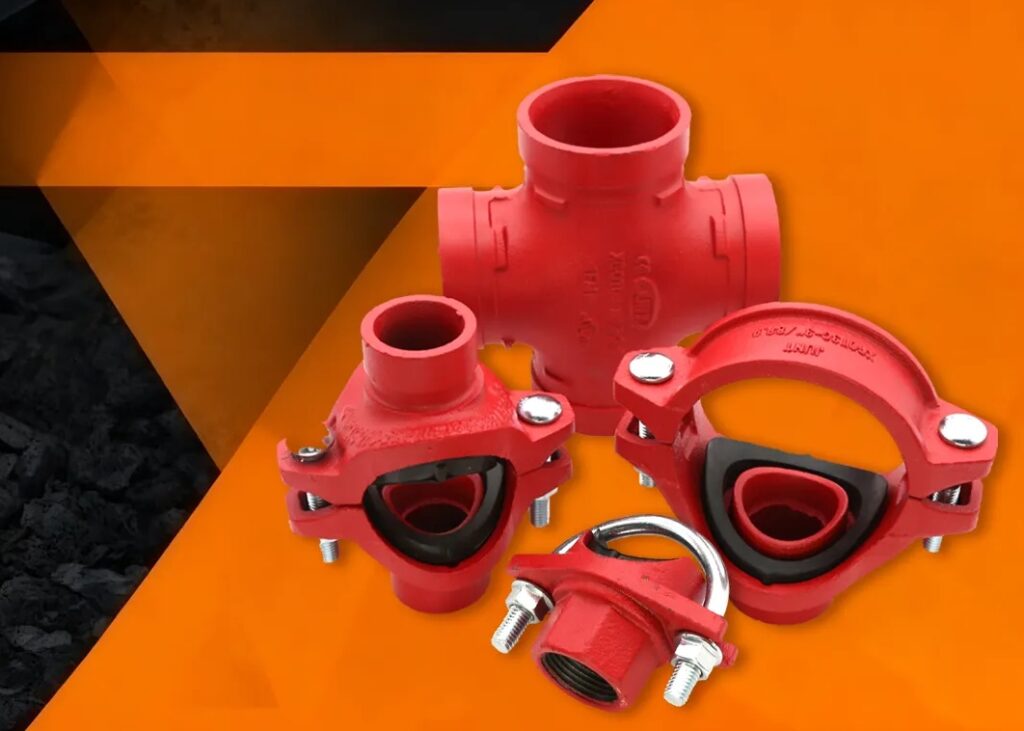

Grooved Mechanical Tee and Direct Branch Connection Efficiency

Creating branch outlets on existing or new sprinkler mains traditionally requires additional cutting, welding, or threading.

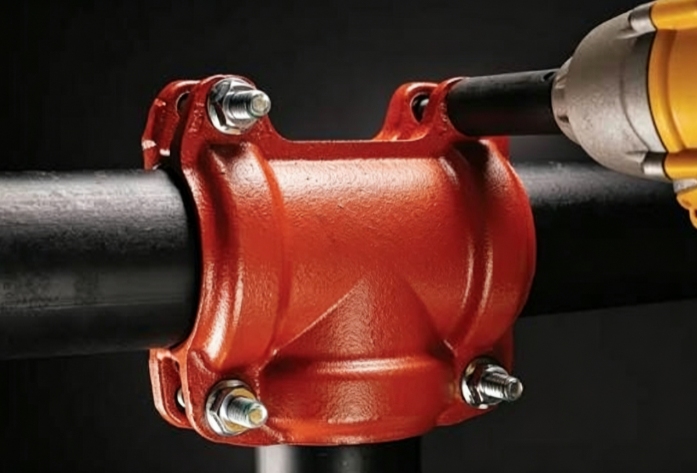

• Direct Branching Efficiency: A grooved mechanical tee clamps around a prepared hole in the main pipe, providing a threaded or grooved branch outlet without removing an entire pipe section.
• Retrofit and Renovation Scenarios: The grooved mechanical tee is useful when adding branch lines or sprinkler drops during warehouse, office, or commercial building modifications.
• Hydraulic Optimization: Smooth internal passageways within fire sprinkler grooved fittings help limit unnecessary friction loss and support required design flow through branch networks.

Material Metallurgy and Sealing Performance in Fire Protection Piping

High-pressure sprinkler networks require durable housings and reliable elastomeric seals capable of handling continuous system pressure and transient surges.

High-Grade Ductile Iron Grooved Fittings and Pressure Resistance

Material quality directly affects the strength and service performance of fire protection pipe fittings.

• ASTM A536 Ductile Iron Construction: JunTong manufactures ductile iron grooved fittings designed to resist deformation and mechanical loading in fire protection piping systems.
• High Grooved Fitting Pressure Rating: The required grooved fitting pressure rating should always be matched to system working pressure, hydrostatic test requirements, pipe size, and coupling design. JunTong products include configurations engineered for demanding sprinkler applications.
• Corrosion Resistance: Protective coating options help shield grooved pipe fittings for fire protection from corrosion in humid basements, plant rooms, underground locations, and coastal environments.

Selecting the correct grooved fitting pressure rating is especially important for pump discharge lines, high-rise risers, and other elevated-pressure sections.

Synthetic EPDM Gasket Technology for High-Reliability Seals

Reliable sealing is another critical factor when specifying fire protection grooved fittings.

• EPDM Gasket for Fire Protection: A properly selected EPDM gasket for fire protection provides water-aging resistance, elasticity, and compression performance for wet-pipe sprinkler applications.
• C-Shape Pressure-Responsive Profile: The gasket geometry allows internal pressure to reinforce contact between the gasket lips and pipe surface.
• Long-Term Sealing Performance: Matching the gasket material to service temperature, fluid, and system conditions helps maintain reliable sealing throughout the operating life of the sprinkler system.

An EPDM gasket for fire protection should always be selected according to the manufacturer’s application and service-condition recommendations.

Regulatory Compliance, Engineering Standards, and Manufacturer Services

Fire protection system components need careful selection based on codes, listings, approvals, and project specifications.

Adherence to NFPA 13 and UL 213 Standards

International fire protection projects often follow NFPA requirements along with third-party product certifications.

• NFPA 13 Grooved Fittings: Engineers specify NFPA 13 grooved fittings. They check the full sprinkler installation, which covers pipe, fittings, supports, spacing, and hydraulic design. This keeps everything in line with NFPA 13 rules.
• UL 213 Grooved Fittings: UL 213 grooved fittings and couplings go through evaluation under certification rules for rubber-gasketed fittings used in fire-protection service.
• Quality Control: Steady manufacturing and inspection keep performance reliable across grooved fittings for fire sprinkler systems. This holds especially true for projects that need listed or approved components.

Specifiers check the listing, certification, pressure class, size range, and service details for each product before giving final approval.

Technical Consulting and Field Support Services

JunTong supports engineering firms, distributors, and contractors throughout product selection and installation.

• Customized Selection Consulting: Technical specialists evaluate system pressure, pipe diameter, structural movement, and application requirements to recommend suitable fire protection grooved fittings.
• Installation Training and Troubleshooting: Guidance on groove dimensions, gasket installation, bolt tightening, and joint inspection helps reduce installation errors.
• Rapid Supply Chain Delivery: As a fire protection fittings manufacturer, JunTong can support project-based sourcing of couplings, elbows, tees, reducers, and other ductile iron grooved fittings.

Maximizing Fire Safety with JunTong Grooved Solutions

Selecting suitable mechanical fittings is essential for building reliable and maintainable sprinkler piping systems.

Elevating Safety and Efficiency in Life Safety Projects

JunTong combines ductile iron manufacturing, mechanical joining technology, and application support for fire protection projects.

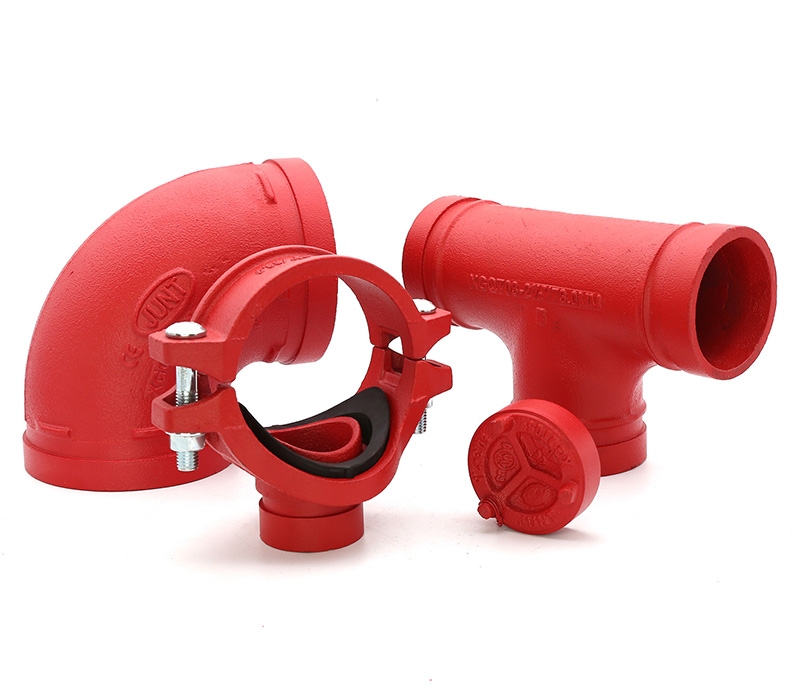

• Comprehensive Piping Solutions: Product options include rigid grooved coupling, flexible grooved coupling, grooved mechanical tee, elbows, reducers, and other grooved fittings for fire sprinkler systems.
• Application-Focused Selection: Engineers can select products according to the required grooved fitting pressure rating, pipe movement, installation layout, and sealing requirements.
• Partner with JunTong Today: Contact JunTong to discuss grooved pipe fittings for fire protection, technical specifications, drawings, product certifications, and project quotations.

FAQ

Q: What differentiates a rigid grooved coupling from a flexible grooved coupling in fire protection systems?

A: A rigid grooved coupling limits the movement of the joint, while a flexible grooved coupling allows the joint to move and turn at certain angles. It may prove beneficial in instances where there needs to be vibration compensation or thermal expansion or contraction of materials.

Q: What are some reasons that an EPDM gasket is often used in a fire sprinkler grooved fitting?

A: An EPDM gasket for fire protection is often chosen in compatible water-based sprinkler applications due to its elastic properties, ability to resist water, and sealing pressure.

Q: What advantage does a grooved mechanical tee have in sprinkler system changes?

A: A grooved mechanical tee creates a branch outlet through a prepared opening in the main pipe, reducing the need to remove and replace long pipe sections during retrofit or expansion work.

Q: What should engineers verify when specifying NFPA 13 grooved fittings and UL 213 grooved fittings?

A: Engineers should confirm product listings, approvals, pressure ratings, sizes, gasket compatibility, and installation requirements. NFPA 13 grooved fittings must be used within a compliant sprinkler system design, while applicable UL 213 grooved fittings should carry the required product certification for the project.
