Engineering Guide to Choose Ductile Iron Grooved Fittings

Modern fluid transportation and mechanical piping systems need strong builds, fast installs, and joints that last. Engineers, contractors, and designers who follow a grooved fittings selection guide often pick high-quality ductile iron grooved fittings. This choice helps balance safety needs with costs across the full project life. JunTong works as a ductile iron grooved fittings manufacturer and grooved fittings supplier. The company supplies grooved pipe fittings such as grooved coupling assemblies, elbows, tees, and adaptors. These suit tough commercial jobs, fire protection pipe fittings, and industrial pipe fittings uses.

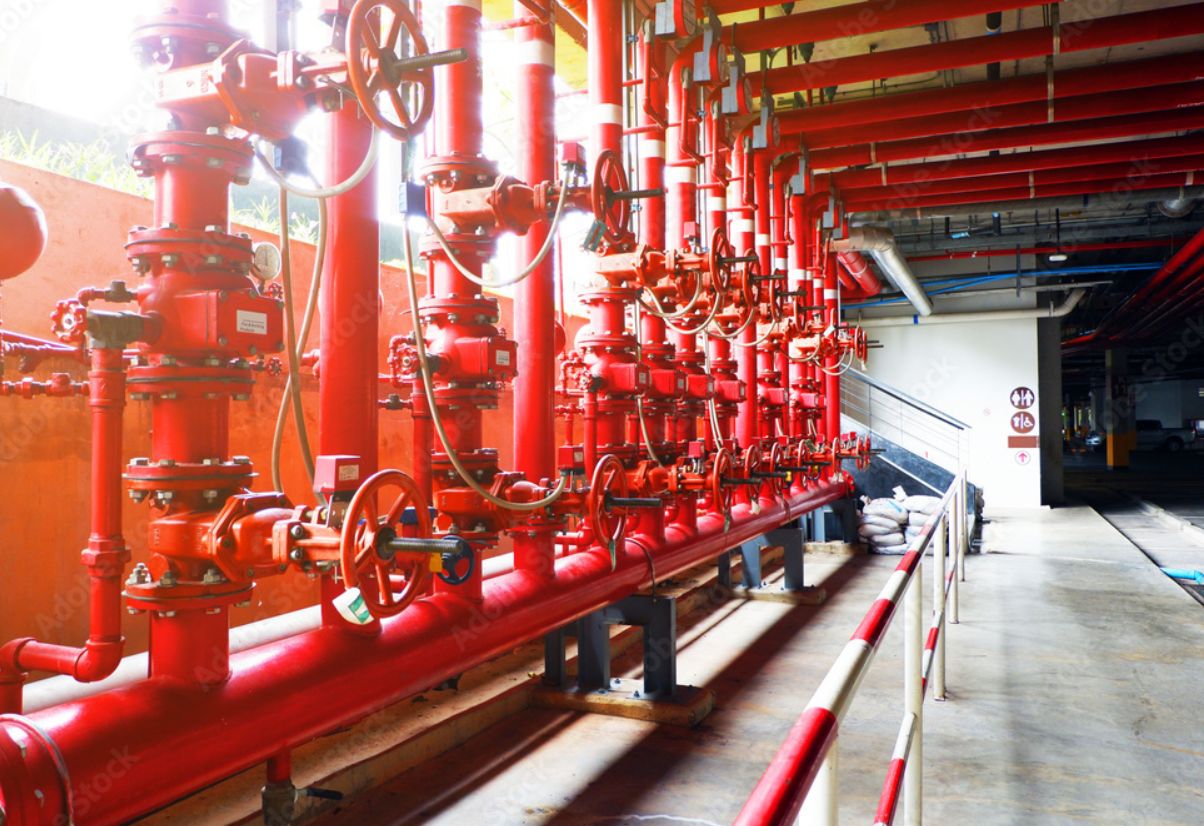

Understanding Ductile Iron Grooved Fittings in Modern Piping

Grooved mechanical piping systems have changed how many projects connect pipes. They replace older welded and flanged methods in infrastructure work around the world. Engineers benefit when they understand the metal makeup and design rules that help ductile iron fittings handle high pressure and temperature changes.

Metallurgical Superiority of Ductile Iron

Ductile cast iron gives better tensile strength and impact resistance than gray iron or carbon steel parts.

• High Tensile Yield Strength: The nodular graphite structure lets ductile iron fittings handle pressure surges and outside shocks without brittle fracture.
• Corrosion and Wear Resistance: Its natural makeup plus epoxy or paint coatings helps industrial pipe fittings last longer in tough settings.
• Lightweight Durability: It offers strong performance with less weight while keeping full ratings.

Primary Mechanical Benefits of Grooved Connections

The grooved piping system uses a cold-rolled or cut groove on the pipe end, an elastomeric gasket, and a two-piece housing.

• Rapid Installation Speed: It removes the need for welding or threading, so crews finish assembly up to 60 percent faster.
• Vibration and Seismic Isolation: A flexible grooved coupling takes in pump vibrations and building movement to protect equipment.
• Simplified Maintenance: Workers can open sections locally without cutting pipe or moving large spools.

Core Types of Grooved Fittings and Engineering Applications

Selecting the appropriate fitting geometry is essential for maintaining hydraulic efficiency and mechanical stability throughout the pipeline layout. As an established OEM pipe fitting manufacturer, JunTong manufactures a comprehensive portfolio of grooved pipe fittings designed to resolve complex routing challenges across diverse sectors.

Rigid vs. Flexible Grooved Couplings

A grooved coupling forms the core mechanical joint in straight pipe runs, with distinct rigid and flexible performance parameters.

The following selection matrix highlights key functional differences and deployment areas:

• Rigid Couplings: Feature cross-ribbed housing keys that lock firmly into the groove, preventing angular deflection and axial movement. Ideal for vertical risers, mechanical room headers, and fire mains where pipe rigidity is mandatory.

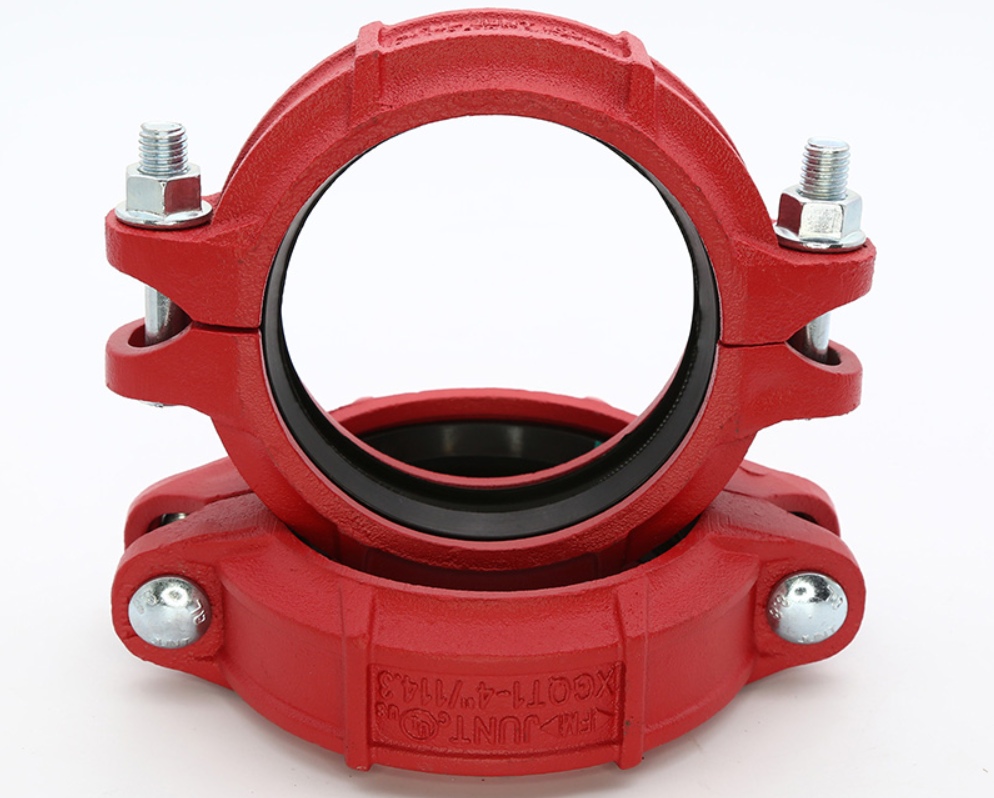

• Flexible Couplings: Permit controlled angular deflection, axial expansion, and contraction. Widely specified in long horizontal runs, seismic expansion joints, and pump house connections to absorb thermal movement without expansion loops.

Grooved Branch Outlets and Mechanical Tees

Creating branch connections on existing or new mains often presents spatial and structural challenges during installation.

• Mechanical Tees: Clamp directly onto a hole cut into the pipe, providing a grooved or threaded branch connection without cutting the main line.
• Reducing Tees: Facilitate direct line reductions at junction points, maintaining smooth flow hydraulics while saving installation space.
• U-Bolted Branch Outlets: Offer compact, high-pressure branch outlets for direct sprinkler head drops and instrument take-offs in fire protection pipe fittings networks.

Directional Fittings and System Transitions

Pipeline routing requires precise changes in direction and seamless transitions between different piping standards.

• Grooved Elbows and Crosses: Engineered with smooth internal radius profiles (90° and 45°) to minimize friction loss in high-velocity water lines.
• Concentric and Eccentric Reducers: Prevent air entrapment in pump suction lines (eccentric) or handle straight-line diameter shifts (concentric).
• Flange Adaptors: Provide a direct transition between grooved pipe ends and ANSI/DIN/BS flanged valves or pumps without welding spools.

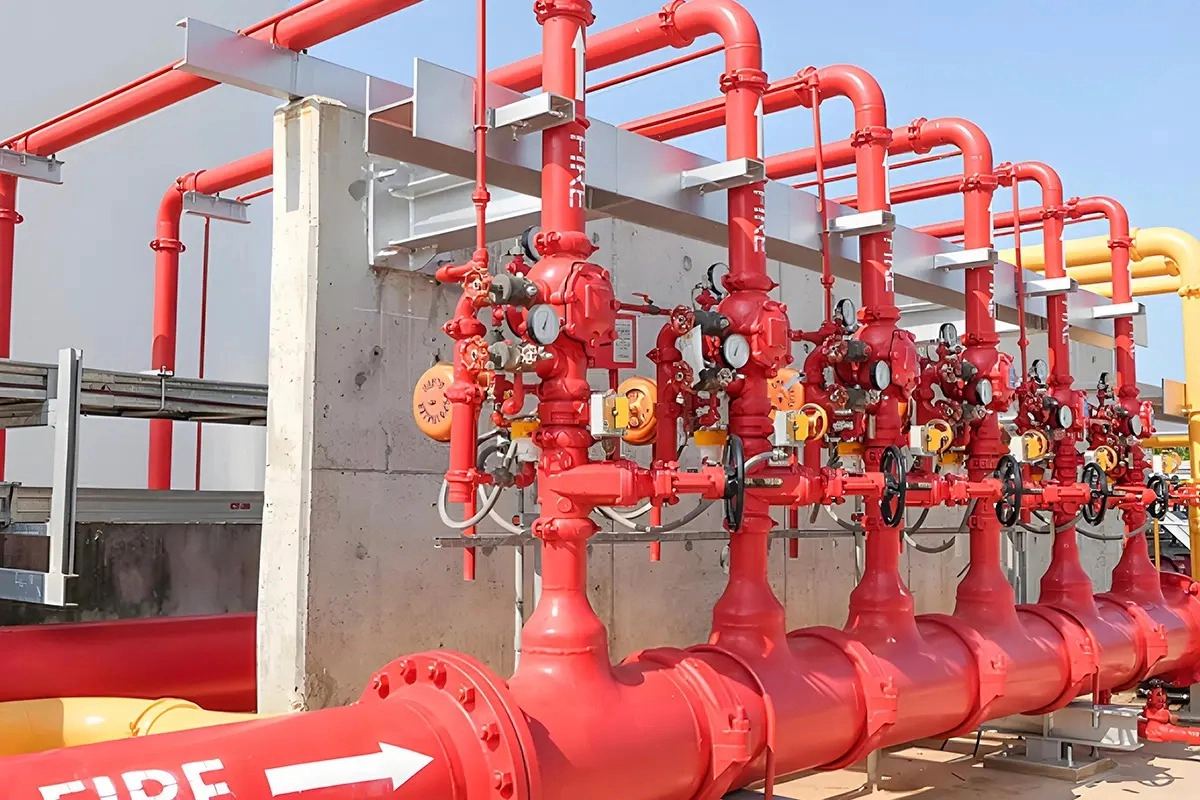

Technical Selection Guide and Sourcing Best Practices

Proper procurement extends beyond basic dimensional matching; following an engineering-backed grooved fittings selection guide requires verifying pressure ratings, gasket compatibility, and supplier manufacturing capabilities.

Pressure Ratings and Elastomeric Seal Selection

System pressure and chemical compatibility dictate the operational boundaries of ductile iron grooved fittings.

• Working Pressure Standards: Ensure the ductile iron fittings meet required system test pressures, typically ranging from 300 PSI to 500 PSI for heavy-duty industrial pipe fittings.
• EPDM Gasket Seals: Standard choice for hot/cold water, fire protection pipe fittings, and oil-free compressed air applications.
• Nitrile (NBR) Seals: Recommended for petroleum products, hydrocarbons, and oil-contaminated air systems.

Partnering with an OEM Pipe Fitting Manufacturer

Working directly with a specialized grooved fittings supplier provides technical and financial advantages for large-scale engineering procurement.

As a reliable OEM pipe fitting manufacturer, JunTong provides tailored manufacturing, complete dimensional engineering, and technical consulting services to support custom grooved piping solutions and specific project needs.

• Custom Grooved Piping Solutions: Custom casting, unique branch spacing, and specialized protective coatings tailored to specific OEM machinery and complex field projects.
• Rigorous Quality Control: Comprehensive hydro-testing, dimensional checks, and material traceabilities ensure consistent performance across all grooved pipe fittings.
• Global Logistics & B2B Support: Streamlined supply chain management from a direct ductile iron grooved fittings manufacturer ensures on-time delivery for major commercial projects.
