Key Advantages of Ductile Iron Pipe Fittings in Infrastructure

A pipeline can hold strong pipes, pumps, and valves. Still, one weak joint may bring leaks, shutdowns, or high repair costs. That turns fitting choice into a key step for any infrastructure project.

Ductile iron pipe fittings deliver a good mix of strength, tight seals, fast installs, and years of service. JunTong, a leading ductile iron pipe fittings manufacturer with more than twenty years in the field, provides high-performance mechanical pipe fittings. These suit fire protection piping, HVAC piping, water supply, industrial lines, and other infrastructure piping work.

High Mechanical Strength for Pressure Piping

Infrastructure piping often runs under steady pressure. It can also face vibration, heat shifts, and stress from installation. The material and joints therefore need to deliver solid mechanical performance.

Strength and Pressure Performance

JunTong grooved pipe fittings use high-strength ductile iron pipe fittings, with product specifications including ASTM A536 Grade 65-45-12. Selected coupling and elbow products are available with working pressures such as 300 psi or 2.07 MPa, depending on the model and project requirements.

This makes ductile iron pipe fittings suitable for:

• Fire sprinkler and standpipe systems
• Pump rooms and water supply pipelines
• HVAC piping chilled-water systems
• Industrial pressure piping
• Water treatment and utility infrastructure

A rigid coupling keeps alignment on a straight run. A 90-degree or 45-degree elbow turns the line without welding in the field. A reducer or reducing tee joins different pipe sizes and keeps the layout efficient.

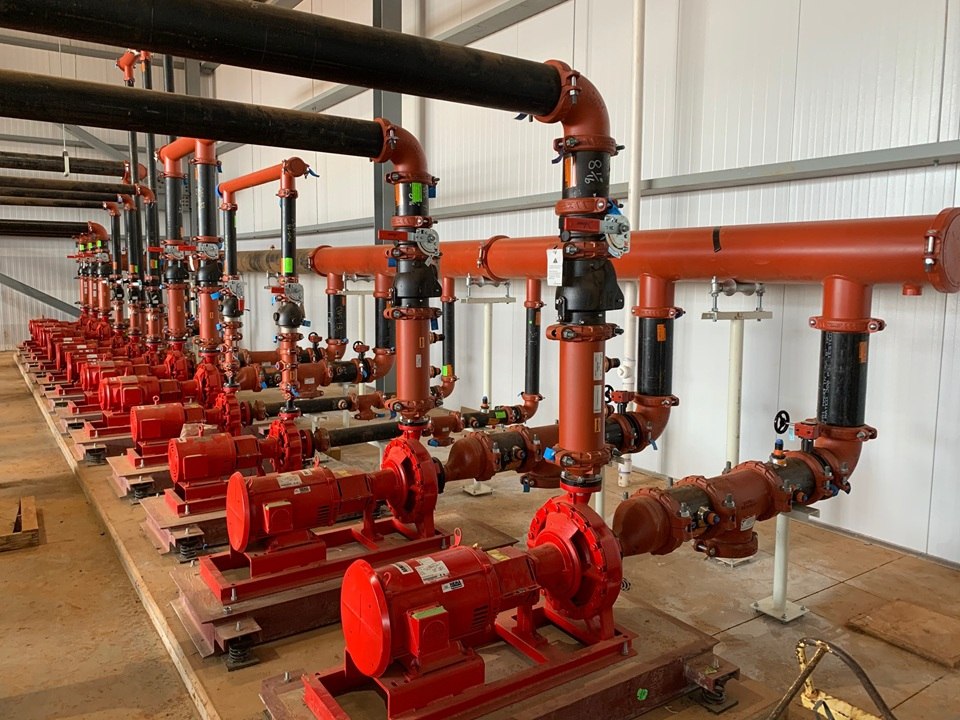

Faster Installation with Grooved Couplings

One of the most important advantages of grooved pipe fittings is their efficient installation method. After the pipe ends are grooved, the gasket is positioned, the coupling housing is installed, and the bolts are tightened.

Flexible and Rigid Grooved Couplings

A flexible coupling can accommodate limited movement, vibration, and thermal expansion. It is commonly used in HVAC piping, pump connections, and systems where controlled movement may occur.

A rigid coupling provides a fixed connection that limits angular deflection, axial movement, and rotation after installation. It is suitable for straight pipe runs, vertical risers, and applications requiring stronger positional control.

Compared with welded or flanged connections, grooved couplings can help contractors:

• Reduce hot work and fire hazards
• Shorten installation time
• Reduce dependence on specialized welding labor
• Work more easily in narrow mechanical rooms
• Remove and replace sections with fewer tools

This is particularly useful when installing fire protection piping in operating buildings, warehouses, hospitals, and commercial facilities where construction disruption must be controlled.

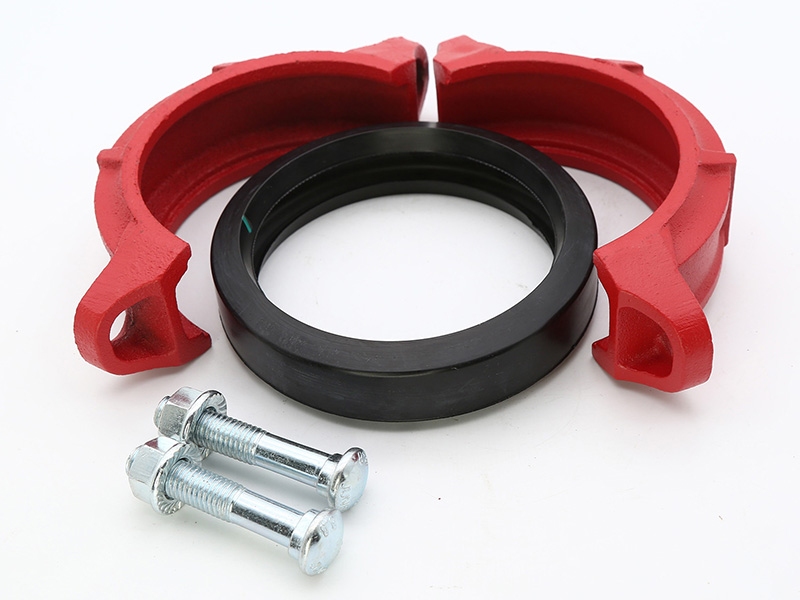

Reliable Sealing for Critical Piping Systems

Leakage in a pipeline can result in water damage, pressure loss, equipment failure, and project delays. A reliable connection must combine a suitable gasket with accurate fitting dimensions and correct installation.

Gaskets, Grooves, and Connection Accuracy

Grooved couplings and fittings use elastomer gaskets to seal around the pipe ends. JunTong products are available with EPDM rubber gaskets, while precision-designed grooves support pipe alignment and uniform gasket compression.

In practical construction, sealing performance depends on:

• Clean and undamaged pipe ends
• Correct groove dimensions
• Proper pipe alignment
• Correct gasket positioning
• Even bolt tightening

These details help solve common problems in fire protection fittings and HVAC piping, including misalignment around pumps, leakage at branch connections, and difficult access in crowded equipment rooms.

Mechanical pipe fittings are also valuable when a branch line must be added to an existing pipeline. Threaded mechanical tees, grooved mechanical tees, and U-bolted mechanical tees provide options for different connection layouts.

Corrosion Resistance and Long-Term Durability

Piping systems may be exposed to condensation, humidity, outdoor weather, underground moisture, or aggressive operating environments. In these conditions, surface treatment is closely connected to service life.

Coating Options for Different Conditions

JunTong provides surface treatment options such as painted finishes, hot-dip galvanizing, epoxy powder, Dacromet, and plastic coating, depending on the product and customer requirements.

Typical applications include:

• Painted fittings for general indoor fire protection systems
• Galvanized fittings for humid or exposed areas
• Epoxy or plastic-lined options for additional protective performance
• Customized coatings for project-specific specifications

Good corrosion resistance can help reduce premature replacement and protect the fitting housing and connection area. The coating and gasket should always be selected according to the fluid, temperature, environment, and applicable project standard.

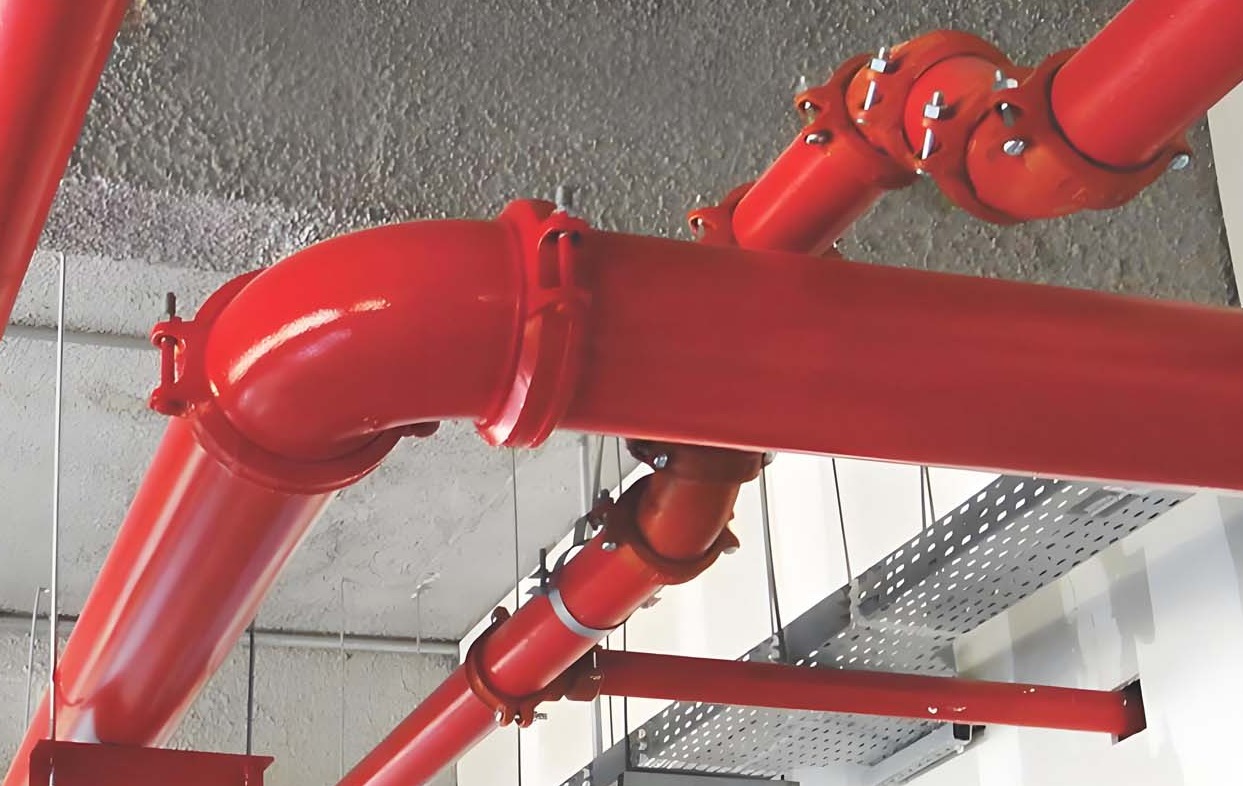

Easier Maintenance and System Adaptability

Infrastructure systems frequently require inspection, expansion, equipment replacement, or layout modification. A connection that is difficult to remove can increase maintenance time and labor cost.

Mechanical Pipe Fittings for Complex Layouts

Mechanical pipe fittings and grooved connections can be disassembled by removing the bolts and coupling housing. This allows technicians to access selected pipe sections without cutting or welding the entire line. The method is useful for cleaning, maintenance, system changes, and future expansion.

JunTong’s product range includes:

• Flexible couplings and rigid couplings
• 90-degree, 45-degree, and 22.5-degree elbows
• Equal tees and reducing tees
• Threaded and grooved mechanical tees
• U-bolted mechanical tees
• Flange adaptors and grooved flanges
• Reducers, end caps, equal crosses, and reducing crosses

This product coverage helps contractors build complex infrastructure piping systems while reducing the need to coordinate multiple fitting sources.

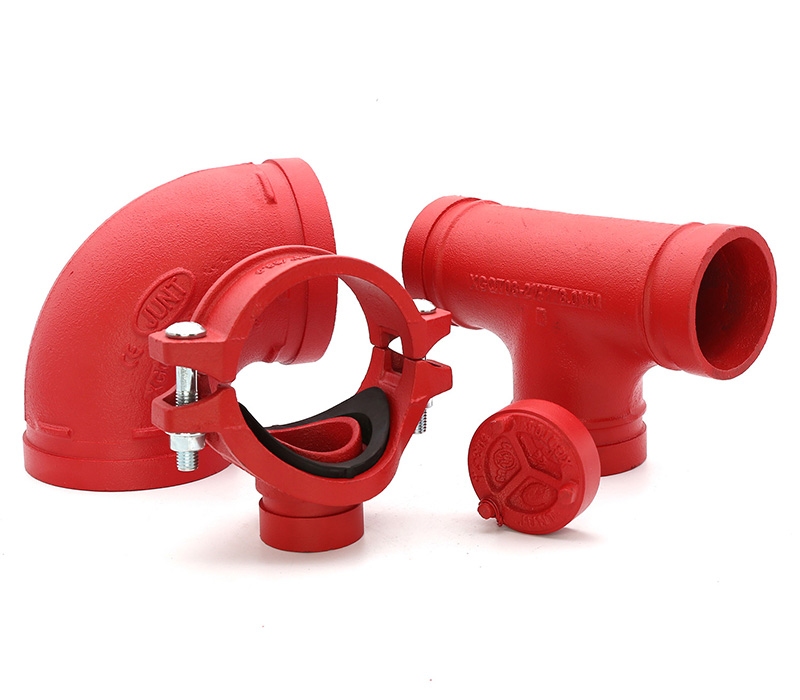

JunTong Product and Technical Support

JunTong is a trusted ductile iron pipe fittings manufacturer specializing in ductile iron grooved couplings and pipe fittings. Its services include material selection, installation guidance, construction code interpretation, maintenance advice, troubleshooting, customized surface treatments, and after-sales technical support.

For buyers comparing a ductile iron pipe fittings manufacturer, grooved fittings supplier, grooved coupling manufacturer, fire protection fittings supplier, or pipeline fittings manufacturer, important evaluation points include:

• Material grade and pressure rating
• Gasket and coating options
• Available sizes and fitting types
• Testing and quality documentation
• Certification support
• OEM or project customization
• Delivery and after-sales service

JunTong’s product information references ANSI, ASTM, and ISO standards, with FM, UL, and CE certification options available for selected products.

Choose Fittings for the Full Project Lifecycle

The five engineering advantages of ductile iron pipe fittings are clear:

• Strong performance for pressure piping
• Faster installation with grooved pipe fittings and grooved couplings
• Reliable gasket sealing
• Improved corrosion resistance

Easier maintenance and system modification

If you are sourcing grooved pipe fittings for a new project, comparing a reliable grooved fittings supplier, or searching for a dependable pipeline fittings manufacturer, contact JunTong for product recommendations, technical information, surface treatment options, and a project quotation.

FAQ

Q: Are ductile iron pipe fittings suitable for fire protection piping?

A: Yes. Couplings, elbows, tees, and mechanical tees see plenty of use in sprinkler and standpipe systems. They manage flow and pressure demands in fire protection piping. Buyers should still verify the needed certifications along with pressure ratings for each project.

Q: What is the difference between a flexible coupling and a rigid coupling?

A: A flexible coupling permits controlled movement and helps cut vibration. A rigid coupling, on the other hand, delivers firmer alignment and holds position steady.

Q: Which coating is best for corrosion resistance?

A: The right coating for corrosion resistance depends on site conditions. Factors include humidity, exposure, fluid type, temperature, and project specifications. Painted, galvanized, epoxy, and plastic-lined options all come up for review.

Q: What should buyers check when selecting a grooved coupling manufacturer?

A: Buyers need to review material grade, pressure rating, gasket quality, certifications, testing procedures, available sizes, delivery capability, and technical support when choosing a grooved coupling manufacturer. These details help match products to real job needs.
