Why Choose Ductile Iron Pipe Fittings? Key Technical Benefits

Modern infrastructure needs pipeline systems that stand up to high pressures, harsh conditions, and fixed service lives. Municipal water networks, industrial plants, and fire protection systems keep growing in scale. This makes the right choice of joining method important for safety and keeping costs under control over time.

Among piping options, ductile iron pipe fittings have become the standard for civil and industrial work. Ductile iron grooved fittings deliver strong performance through solid metallurgy and careful design. They work better than older gray iron or basic carbon steel. As a dedicated ductile iron pipe fittings manufacturer in the fluid conveyance industry, JunTong makes high-integrity grooved pipe fittings that handle the demands of current infrastructure projects.

5 Key Engineering Advantages of Ductile Iron Pipe Fittings

Ductile iron technology combines the inherent corrosion resistance of cast iron with the physical strength and flexibility of steel, delivering significant long-term performance benefits.

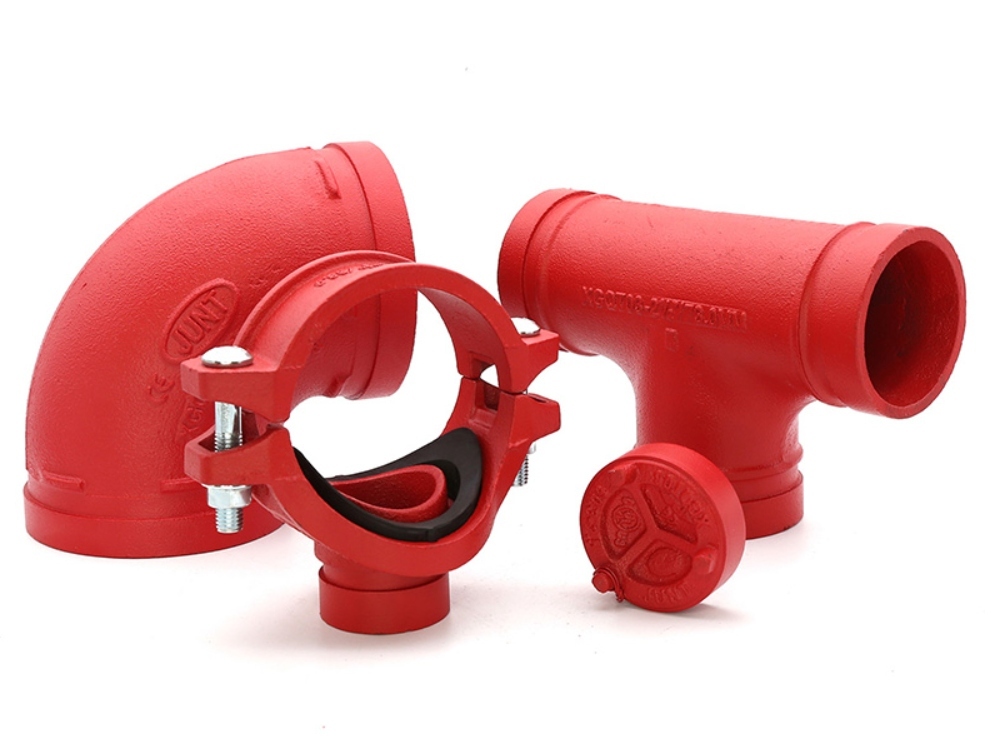

Superior Tensile Strength and Fatigue Resistance

Ductile iron fittings for infrastructure have a special inner structure. This gives them solid strength when loads are high.

• Spheroidal Graphite Structure: Gray iron has flakes that break easily. Ductile iron pipe fittings use round graphite nodules. These stop cracks from moving when strain gets high.
• ASTM A536 Grade 65-45-12 Compliance: These parts meet ASTM A536 Grade 65-45-12. They provide at least 45,000 psi yield strength and 12% elongation. This fits high-pressure ductile iron fittings in tough jobs.
• Pressure Surge Protection: High-pressure ductile iron fittings take water hammer and fast pressure jumps in stride. Their built-in give stops sudden body breaks.

High Corrosion Resistance for Extended Service Life

Infrastructure networks need long-term durability when they face aggressive soils, chemicals, and moisture.

• Natural Oxide Layer: Corrosion-resistant ductile iron fittings form a protective oxidation layer on their own. This layer slows environmental degradation far better than unprotected carbon steel.
• Specialized Surface Treatments: JunTong supplies advanced surface finishes such as hot-dip galvanizing and epoxy powder coating. These finishes support long-lasting, corrosion-resistant ductile iron fittings.
• Subterranean Reliability: The fittings suit underground water supply pipe fittings well. They resist soil stress and microbial corrosion over decades of ongoing service.

Advanced Sealing Performance with EPDM Rubber Gasket Technology

Achieving a reliable, leak-free pipe connection relies heavily on advanced elastomeric gasket designs.

• Pressure-Responsive Sealing: The specialized EPDM rubber gasket uses internal line pressure to reinforce its seal against the pipe walls, enhancing tightness as system pressure increases to maintain a completely leak-free pipe connection.
• Wide Thermal Tolerance: High-grade EPDM rubber gasket formulations maintain operational elasticity across wide temperature ranges, suitable for both hot and cold municipal water lines.
• Chemical Compatibility: Resists water treatment chemicals, aging, and compression set, preventing joint degradation in critical water supply pipe fitting applications.

Flexibility and Vibration Absorption in Dynamic Environments

Pipelines shift when temperatures change or during earthquakes. They need connections that can adjust to these movements.

• Angular Deflection & Linear Movement: A flexible grooved pipe connection handles controlled axial shift and small angle changes. It keeps the seal intact.
• Vibration Dampening: A flexible grooved pipe connection cuts mechanical noise and pump vibration. This protects pumps, valves, and other equipment farther along the line.
• Seismic Resilience: Flexible joint spacing in ductile iron grooved fittings works like an expansion joint. It handles ground settlement and tremors in bridge and tunnel piping.

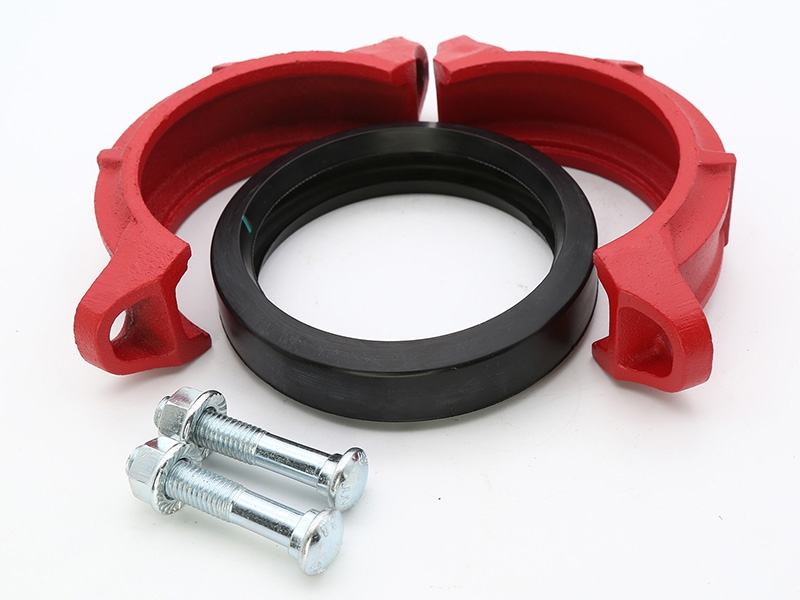

Unmatched Installation Efficiency and Cost-Effectiveness

Grooved pipe fittings help speed up building projects and lower labor costs.

• No Flame or Welding Required: Mechanical grooved pipe fittings remove the need for hot-work permits, fire watch, and special welding tools at job sites.
• Rapid Assembly: Installing a rigid couplingwith a grooved pipe connection takes only standard wrenches to tighten the housing bolts. This cuts installation time compared to flanged or welded connections.
• Simplified Maintenance: Taking apart one joint in grooved pipe fittings lets workers check or replace parts quickly without cutting the main header.

Industrial Applications and Tailored System Components

Selecting the right ductile iron grooved fittings for each working condition improves flow performance and keeps the whole system safe.

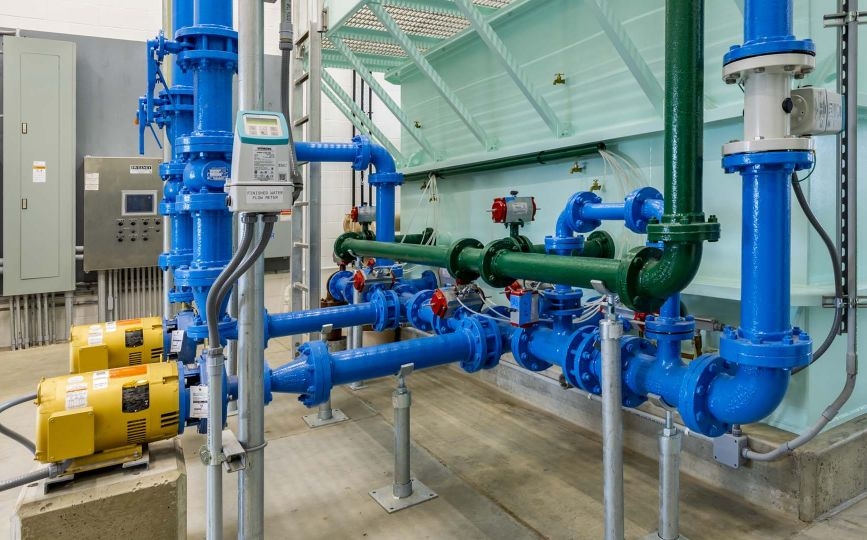

Municipal Water Supply and Wastewater Networks

Big city water projects need strong flow rates, no leaks, and solid pipe strength.

• Directional Changes: Grooved Pipe Elbows (90° and 45°) guide large mains past buried barriers and keep the flow smooth in water supply pipe fitting networks.
• Pipeline Branching: Grooved Equal Tees and Grooved Reducing Tees help split flow into side lines without much pressure loss.
• Pipe Diameter Transitions: Concentric and Eccentric Grooved Reducers connect different pipe sizes and avoid sudden flow changes or trapped air.

High-Pressure Commercial and Industrial Fire Protection

Fire sprinkler and standpipe systems demand immediate response reliability under high operating pressures.

• Main Distribution Headers: U-Bolted Mechanical Tees and standard Grooved Mechanical Tees enable direct, branch-line tie-ins without cutting main structural headers.
• Dead-End Sealing: Grooved Pipe End Caps provide secure, pressure-rated closures at line terminals while offering accessible clean-out ports for regular flushing.
• Equipment Interfaces: Grooved Flange Adaptors bridge grooved mains directly to flanged pumps, valves, and backflow preventers.

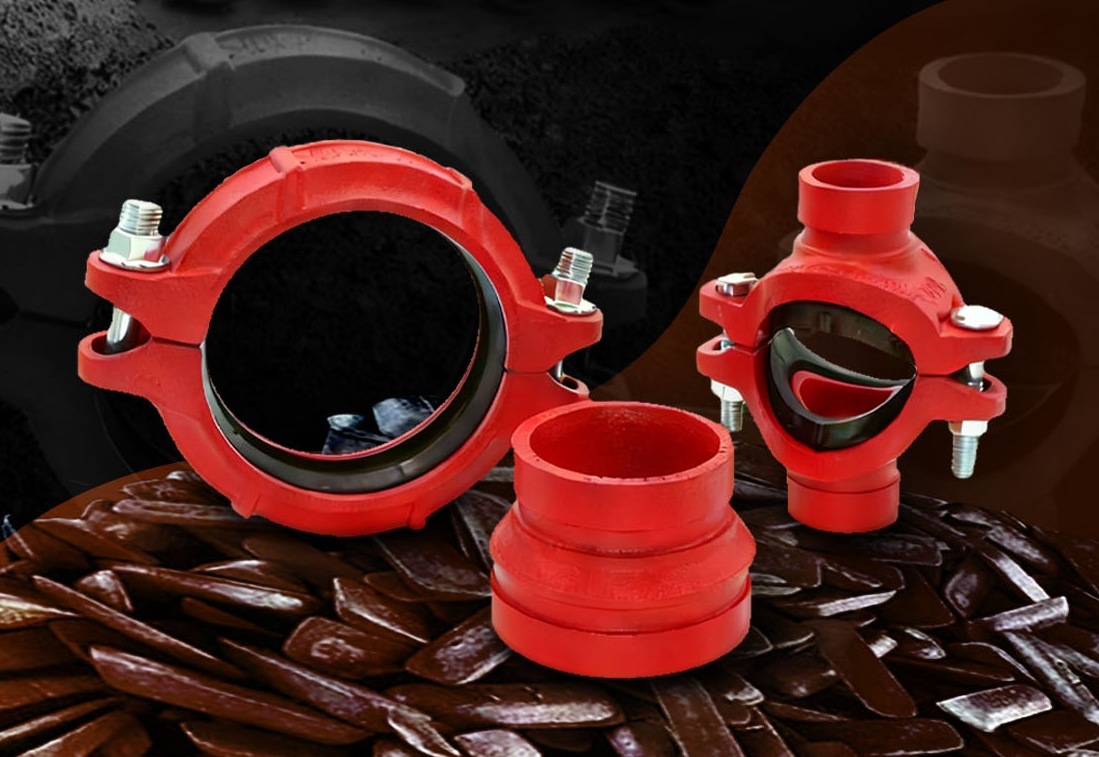

Technical Support and Comprehensive Manufacturing Solutions

Good castings alone do not guarantee success on site. Projects also call for accurate engineering work, flexible production choices, and solid technical advice.

At JunTong, an established ductile iron pipe fittings manufacturer, we help contractors and distributors with full pipeline support services:

• Free Pipeline Selection Guidance: Our engineers give clear advice on parts for each job. This cuts down on wrong fits and wasted materials.
• Custom Coating Solutions: We offer galvanized, painted, or plastic-coated options for ductile iron fittings for infrastructure. These suit coastal areas, damp sites, or places with chemicals.
• Full Product Range Supply: We cover everything from standard grooved pipe fittings to heavy clamps and gaskets. All items come as certified sets.
• 24/7 Technical Assistance: Our team stays ready with advice, site help, and quick answers for tough jobs that use high-pressure ductile iron fittings.

Conclusion

Choosing high-quality ductile iron pipe fittings is fundamental to building safe, long-lasting, and efficient infrastructure pipeline systems. By combining high tensile strength, pressure-responsive EPDM rubber gasket sealing, and rapid grooved assembly, engineers can achieve a reliable leak-free pipe connection while minimizing total project installation costs.

Ready to optimize your next municipal, industrial, or fire protection pipeline project? Contact JunTong, your trusted ductile iron pipe fittings manufacturer, today to request a competitive quote, download detailed technical specs, or consult with our engineering specialists on custom selection services.

FAQ

Q: What is the main advantage of ductile iron over cast iron in infrastructure piping systems?

A: Ductile iron pipe fittings feature nodular graphite. This gives high tensile strength along with flexibility and impact resistance similar to steel. Traditional cast iron stays brittle and cracks under high pressure or shock loads.

Q: How does a grooved mechanical joint maintain a leak-free seal under high pressure?

A: The elastomeric C-shaped EPDM rubber gasket forms an initial seal. Internal fluid pressure then pushes the gasket lips more firmly against the pipe walls and fitting housing. This helps maintain a leak-free pipe connection.

Q: Can flexible grooved couplings replace traditional expansion joints in long pipeline runs?

A: Yes, a flexible grooved pipe connection handles linear expansion, thermal contraction, and angular deflection over several joints. It frequently removes the need for expensive specialized expansion joints.

Q: What international material standards apply to high-pressure ductile iron fittings?

A: Quality high-pressure ductile iron fittings are cast according to ASTM A536 Grade 65-45-12 for material strength. Their dimensions, groove specifications, and pressure ratings follow ANSI/AWWA C606 standards. Field crews often see these fittings hold up well in water supply projects where pressure swings happen daily.
